Festo
174409

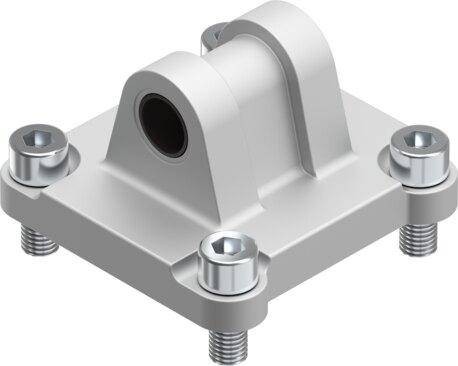

Clevis flange SNCL-100
The Festo 174409 is an industrial component featuring a size 100 footprint based on the ISO 15552 norm. Constructed with die-cast aluminum mounting material, polymer bearing material, and galvanized steel screws, this 606 g unit offers a maximum load capacity of 9 kN and an ambient temperature range of -40 °C to 90 °C. It carries a corrosion resistance class of CRC 1, VDMA24364-B2-L LABS conformity, and RoHS compliant materials. Submit your exact part number, quantity, and application requirements for an RFQ.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 174409
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 174409.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 100
- Based on norm
- ISO 15552 (previously also VDMA 24562, ISO 6431, NF E49 003.1, UNI | 10290)
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -40 °C...90 °C
- Max. load capacity
- 9 kN
- Product weight
- 606 g
- Note on materials
- RoHS compliant
- Mounting material
- Die-cast aluminum
- Material of bearing
- Polymer
- Material of screws
- Steel | Galvanized
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 174409. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
