Festo
174410

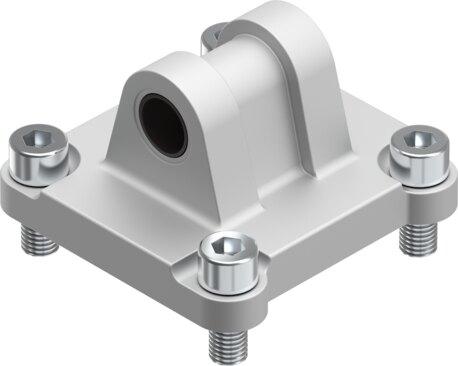

Clevis flange SNCL-125
The Festo part number 174410 is an industrial component of size 125 constructed on the basis of norm ISO 15552. This unit features a die-cast aluminum mounting material, polymer bearing material, and galvanized steel screws, with a total product weight of 1135 g. It is RoHS compliant and exhibits a corrosion resistance class of CRC 1 for low corrosion stress, VDMA24364-B2-L LABS conformity, and an ambient temperature operating range of -40 °C to 90 °C. Submit the exact part number, quantity, and application requirements to receive a quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 174410
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 174410.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 125
- Based on norm
- ISO 15552 (previously also VDMA 24562, ISO 6431, NF E49 003.1, UNI | 10290)
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -40 °C...90 °C
- Product weight
- 1135 g
- Note on materials
- RoHS compliant
- Mounting material
- Die-cast aluminum
- Material of bearing
- Polymer
- Material of screws
- Steel | Galvanized
