Festo
175054

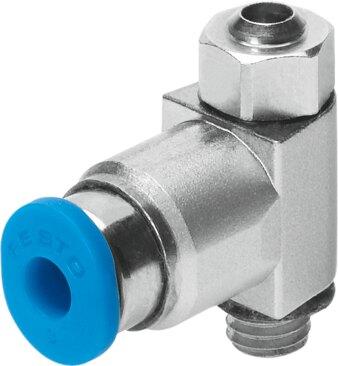

Throttle valve GRLO-M5-QS-3-LF-C
The Festo 175054 is a screw-in industrial component featuring a flow control valve function with an M5 pneumatic connection 1 and a QS-3 pneumatic connection 2. It utilizes a slotted screw adjusting element, a brass screwed plug, and NBR seals, providing a standard nominal flow rate of 40 l/min in the flow control direction and an operating pressure range of 0 bar to 10 bar. This RoHS-compliant unit weighs 9 g, operates with compressed air as per ISO 8573-1:2010 [7:4:4], and conforms to VDMA24364-B1/B2-L LABS standards. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 175054
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 175054.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- Flow control function
- Pneumatic connection 1
- M5
- Pneumatic connection 2
- QS-3
- Adjusting element
- Slotted screw
- Type of mounting
- Screw-in
- Standard nominal ow rate in ow control direction
- 40 l/min
- Operating pressure
- 0 bar...10 bar
- Ambient temperature
- -10 °C...60 °C
- Mounting position
- Any
- Standard ow rate in ow control direction 6 -> 0 bar
- 80 l/min
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 4 according to ISO 14644-1
- Temperature of medium
- -10 °C...60 °C
- Max. tightening torque
- 1.5 Nm
- Product weight
- 9 g
- Material of screwed plug
- Brass
- Note on materials
- RoHS compliant
- Seals material
- NBR
- Releasing ring material
- POM
- Material of adjusting screw
- Brass
- Swivel joint material
- Die-cast zinc
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 175054. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
