Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com
Reference imageConfirm configuration by manufacturer part number.
Festo
175057

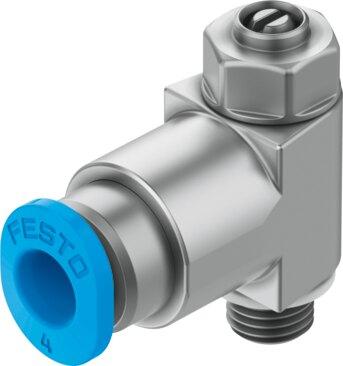

Throttle valve GRLO-M5-QS-4-LF-C
The Festo 175057 is an industrial flow control valve featuring an M5 pneumatic connection on one side and a QS-4 connection on the other, regulated via a slotted screw adjusting element for screw-in mounting. This component achieves a standard nominal flow rate of 40 l/min in the flow control direction and operates within a pressure range of 0 bar to 10 bar under an ambient and medium temperature of -10 °C to 60 °C. Constructed with a brass screwed plug and NBR seals, the 9 g unit supports compressed air operation according to ISO 8573-1:2010 [7:4:4] with optional oil lubrication. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 175057
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 175057.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- Flow control function
- Pneumatic connection 1
- M5
- Pneumatic connection 2
- QS-4
- Adjusting element
- Slotted screw
- Type of mounting
- Screw-in
- Standard nominal ow rate in ow control direction
- 40 l/min
- Operating pressure
- 0 bar...10 bar
- Ambient temperature
- -10 °C...60 °C
- Mounting position
- Any
- Standard ow rate in ow control direction 6 -> 0 bar
- 80 l/min
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 4 according to ISO 14644-1
- Temperature of medium
- -10 °C...60 °C
- Max. tightening torque
- 1.5 Nm
- Product weight
- 9 g
- Material of screwed plug
- Brass
- Note on materials
- RoHS compliant
- Seals material
- NBR
- Releasing ring material
- POM
- Material of adjusting screw
- Brass
- Swivel joint material
- Die-cast zinc
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 175057. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
