Festo
175058

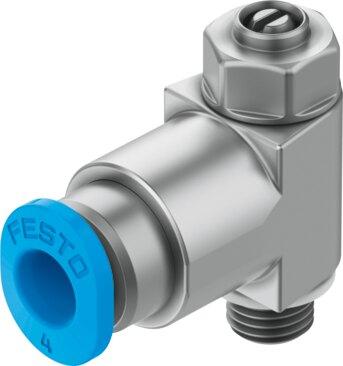

One-way flow control valve GRLZ-M5-QS-4-LF-C
The Festo part number 175058 is an industrial component featuring a supply air flow control non-return function with a QS-4 pneumatic connection 1 and an M5 pneumatic connection 2. This screw-in component utilizes a slotted screw adjusting element, operates within a pressure range of 0.2 bar to 10 bar (2.9 psi to 145 psi), and has a nickel-plated brass screwed plug with a product weight of 9 g. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 175058
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 175058.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- Supply air ow control non-return function
- Pneumatic connection 1
- QS-4
- Pneumatic connection 2
- M5
- Adjusting element
- Slotted screw
- Type of mounting
- Screw-in
- Standard nominal ow rate in ow control direction
- 48 l/min
- Standard nominal ow rate in non-return direction
- 40 l/min...65 l/min
- Operating pressure
- 0.2 bar...10 bar | 2.9 psi...145 psi
- Ambient temperature
- -10 °C...60 °C
- Mounting position
- Any
- Standard ow rate in ow control direction 6 -> 0 bar
- 80 l/min
- Standard ow rate in non-return direction at 6 -> 0 bar
- 65 l/min...110 l/min
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 4 according to ISO 14644-1
- Temperature of medium
- -10 °C...60 °C
- Max. tightening torque
- 1.5 Nm
- Product weight
- 9 g
- Material of screwed plug
- Brass | Nickel-plated
- Note on materials
- RoHS compliant
- Seals material
- NBR
- Releasing ring material
- POM
- Material of adjusting screw
- Brass
- Swivel joint material
- Die-cast zinc
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 175058. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
