Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com
Reference imageConfirm configuration by manufacturer part number.
Festo
175136

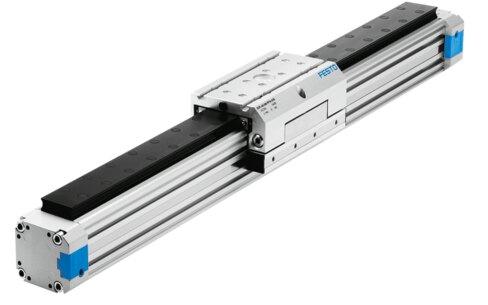

Linear actuator DGPL-40- -
The Festo 175136 is a double-acting industrial component featuring a 40 mm piston diameter and a variable stroke ranging from 10 mm to 3000 mm. This unit operates at a pressure range of 0.15 MPa to 0.8 MPa (1.5 bar to 8 bar) with compressed air as per ISO 8573-1:2010 [7:-:-], delivering a theoretical force of 754 N both retracting and advancing at 6 bar. Configured with adjustable pneumatic cushioning at both ends and a 30 mm cushioning length, it supports any mounting position and maintains an IP65 degree of protection within an ambient temperature range of -10 °C to 60 °C. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 175136
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 175136.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 10 mm...3000 mm
- Piston diameter
- 40 mm
- Cushioning
- Pneumatic cushioning, adjustable at both ends | Pneumatic shock absorber, hard characteristic curve
- Mounting position
- Any
- Guide
- Plain-bearing guide | Basic guide | Recirculating ball bearing | Heavy-duty guide
- Driver principle
- Positive locking (slot)
- Position sensing
- Via proximity switch | With linear potentiometer attached | With integrated linear potentiometer
- Variants
- Supply port at both ends | Protected version | Standard slide | Extended slide | Rear clamping unit | Clamping unit, underneath | Front clamping unit
- Operating pressure
- 0.15 MPa...0.8 MPa | 1.5 bar...8 bar
- Mode of operation
- Double-acting
- Explosive ambient temperature
- -10°C <= Ta <= +60°C
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 0 - No corrosion stress | 1 - Low corrosion stress | 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Degree of protection
- IP65
- Ambient temperature
- -10 °C...60 °C
- Cushioning length
- 30 mm
- Theoretical force at 6 bar, retracting
- 754 N
- Theoretical force at 6 bar, advancing
- 754 N
- Alternative connections
- See product drawing
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 175136. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
