Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

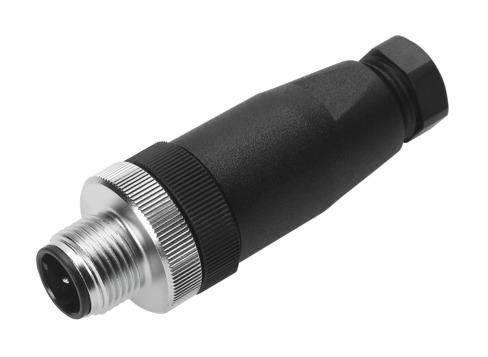

Reference imageConfirm configuration by manufacturer part number.
Festo
175487
Plug SEA-M12-5GS-PG7
The Festo 175487 is an industrial component featuring an M12x1 round plug connector with a 5-pin, straight plug and screw terminal configuration conforming to EN 61076-2-101 and EN 61984 norms. It operates at an AC and DC voltage range up to 60 V, a current rating of 4 A at 40 °C, a surge resistance of 1.5 kV, and offers IP67 degree of protection within an ambient temperature range of -40 °C to 85 °C. This RoHS-compliant part weighs 21.5 g, utilizes threaded sleeve mounting in any position, and accommodates cable diameters from 4 mm to 6 mm via a Pg7 cable fitting with a 0.75 mm² connection cross section. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 175487
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 175487.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Based on norm
- EN 61076-2-101 | EN 61984
- Type of mounting
- With threaded sleeve
- Mounting position
- Any
- Product weight
- 21.5 g
- Electrical connection
- 5-pin | Form A | M12x1 round plug connector | Straight plug/screw terminal
- DC operating voltage range
- 60 V
- Operating voltage range AC
- 60 V
- Current rating at 40° C
- 4 A
- Surge resistance
- 1.5 kV
- Cable tting
- Pg7
- Approved cable diameter
- 4 mm...6 mm
- Connection cross section
- 0.75 mm²
- Degree of protection
- IP67
- Ambient temperature
- -40 °C...85 °C
- CE marking (see declaration of conformity)
- As per EU low voltage directive
- UKCA marking (see declaration of conformity)
- To UK instructions for electrical equipment
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Note on materials
- RoHS-compliant
- Contamination level
- 3
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- Housing material
- PBT
- Housing colour
- Black
- Material of union nut
- Die-cast zinc | Nickel-plated
- Material of pin contacts
- Brass | White bronze, coated
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 175487. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
