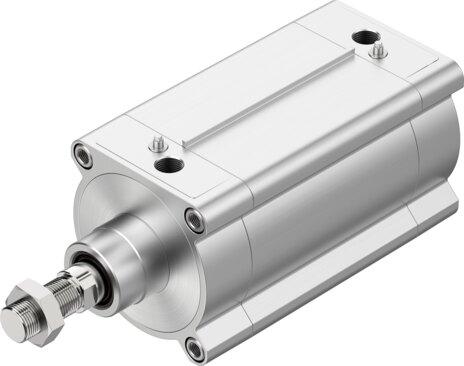

Reference imageConfirm configuration by manufacturer part number.
Festo
1755169
ISO cylinder DSBF-C-...-125- -
The Festo 1755169 is a double-acting industrial component featuring a 125 mm piston diameter, an adjustable stroke length from 1 mm to 2800 mm, and a profile barrel structural design conforming to ISO 15552. Operating at pressures from 0.05 bar to 10 bar utilizing compressed air per ISO 8573-1:2010 [7:4:4], it incorporates self-adjusting pneumatic end-position cushioning alongside position sensing via proximity switch and a high corrosion resistance class (CRC 3). Submit the exact part number, quantity, and application requirements for a formal price quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1755169
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1755169.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 1 mm...2800 mm
- Piston diameter
- 125 mm
- Piston rod thread
- M27x2 | M16
- Based on norm
- ISO 15552
- Cushioning
- Elastic cushioning rings/pads at both ends | Self-adjusting pneumatic end-position cushioning | Pneumatic cushioning, adjustable at both ends
- Mounting position
- Any
- Conforms to standard
- ISO 15552
- Piston rod end
- External thread | Internal thread
- Structural design
- Piston | Piston rod | Prole barrel
- Position sensing
- Via proximity switch
- Variants
- For unlubricated operation | Increased chemical resistance | Hard scraper | Extended external thread piston rod | Internal thread on piston rod | Extended piston rod | Uniform, slow movement | Through piston rod | Heat-resistant seals max. 120°C | Temperature range 0 to + 150°C | Temperature range -40 to 80°C
- Operating pressure
- 0.005 MPa...1 MPa | 0.05 bar...10 bar
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 3 - High corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L | VDMA24364 Zone III
- For use in the food industry
- See supplementary material information
