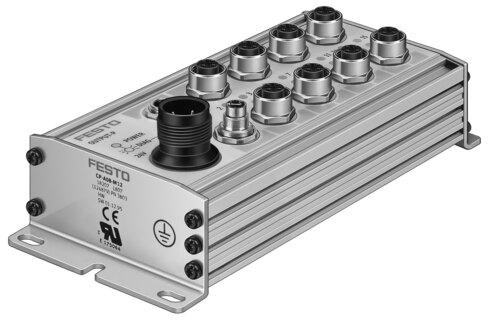

Name: Festo 175640 Electrical module CP-A08-M12-5POL
Brand: Festo

Electrical module CP-A08-M12-5POL

The Festo part number 175640 is an industrial component featuring VDMA24364-B2-L LABS conformity and KC-EMV certification alongside c UL us recognition. It carries CE and UKCA markings per EU and UK directives for EMC, explosion protection (ATEX/UKEX), and RoHS. Designed for Zone 2 gas and Zone 22 dust hazardous areas, it holds ATEX categories II 3G and II 3D with EPL Gc (GB) and EPL Dc (GB) certifications, ignition protection types Ex ec IIC T5 Gc X and Ex tc IIIC T80°C IP65 Dc X, and an explosive ambient temperature range of -5°C ≤ Ta ≤ +50°C. Submit the exact part number, quantity, and application requirements for a formal quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 175640
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 175640.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

LABS (PWIS) conformity: VDMA24364-B2-L
CE marking (see declaration of conformity): As per EU EMC directive | as per EU explosion protection directive (ATEX) | As per EU RoHS directive
UKCA marking (see declaration of conformity): To UK instructions for EMC | acc. to UK EX instructions | To UK RoHS instructions
KC characters: KC-EMV
Certication: c UL us - recognized (OL)
Explosion prevention and protection: Zone 2 (ATEX) | Zone 2 (UKEX) | Zone 22 (ATEX) | Zone 22 (UKEX)
ATEX category gas: II 3G
ATEX category for dust: II 3D
Explosion protection certication outside the EU: EPL Dc (GB) | EPL Gc (GB)
Type of ignition protection for gas: Ex ec IIC T5 Gc X
Type of (ignition) protection for dust: Ex tc IIIC T80°C IP65 Dc X
Explosive ambient temperature: -5°C <= Ta <= +50°C

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 175640. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
