Festo
175713

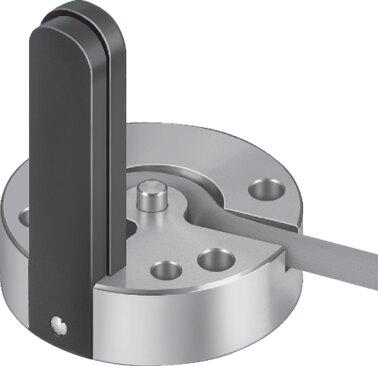

Position sensor SMH-S1-HGD16
The Festo part number 175713 is a magnetic Hall position measuring industrial component specifically designed for mounting on a pneumatic gripper in any position by means of a screw connection. Featuring an analog output signal, this device operates within an ambient temperature range of 5 °C to 60 °C and includes a 0.5 m gray TPE-U(PUR) cable with an M8x1 A-coded 4-pin plug containing gold-plated brass pin contacts. It complies with the EU and UK EMC and RoHS directives while maintaining RoHS material compliance without short-circuit, overload, or reverse polarity protection. Submit the exact part number, quantity, and application requirements for a quote today.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 175713
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 175713.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Design
- For gripper
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions
- Note on materials
- RoHS compliant
- Measured variable
- Position
- Measuring principle
- Magnetic Hall
- Ambient temperature
- 5 °C...60 °C
- Short-circuit protection
- No
- Overload protection
- Not available
- Output signal
- Analog
- Reverse polarity protection
- No
- Electrical connection 1, connection type
- Cable with plug
- Electrical connection 1, connection technology
- M8x1 A-coded as per EN 61076-2-104
- Electrical connection 1, number of pins/wires
- 4
- Material of pin contacts
- Gold-plated brass
- Cable length
- 0.5 m
- Color cable sheath
- Gray
- Material of cable sheath
- TPE-U(PUR)
- Type of mounting
- Screwed on to pneumatic gripper
- Mounting position
- Any
- Product weight
- 30 g
- Housing material
- Wrought aluminum alloy | Epoxy | Brass, nickel-plated | POM | PUR
- Degree of protection
- IP65
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 175713. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
