Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

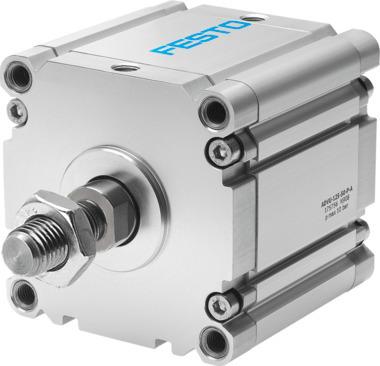

Reference imageConfirm configuration by manufacturer part number.
Festo
175773
Compact air cylinder ADVU-125- -A-P-A-S6
The Festo part number 175773 is a double-acting industrial component featuring a 125 mm piston diameter and an adjustable stroke length from 1 mm to 400 mm with elastic cushioning rings at both ends. Operating within a pressure range of 0.05 MPa to 1 MPa and temperatures up to 120 °C, this unit utilizes heat-resistant seals and allows compressed air operation according to ISO 8573-1:2010 [7:4:4]. It delivers a theoretical force of 7363 N advancing and 6881 N retracting at 6 bar while providing position sensing via proximity sensors in any mounting position. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 175773
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 175773.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 1 mm...400 mm
- Piston diameter
- 125 mm
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Mode of operation
- Double-acting
- Piston rod end
- External thread
- Structural design
- Piston | Piston rod
- Position sensing
- For proximity sensor
- Variants
- Heat-resistant seals max. 120°C
- Operating pressure
- 0.05 MPa...1 MPa | 0.5 bar...10 bar | 7.25 psi...145 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- 0 °C...120 °C
- Impact energy in the end positions
- 3.3 J
- Theoretical force at 6 bar, retracting
- 6881 N
- Theoretical force at 6 bar, advancing
- 7363 N
- Moving mass at 0 mm stroke
- 1317 g
- Additional moving mass per 10 mm stroke
- 63 g
- Basic weight with 0 mm stroke
- 3426 g
- Additional weight per 10 mm stroke
- 168 g
- Type of mounting
- Optionally: | With through-hole | With accessories
- Pneumatic connection
- G1/4
- Flange screws material
- Steel, galvanized
- Cover material
- Wrought aluminum alloy
- Material of dynamic seals
- FPM
- Piston rod material
- High-alloy steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 175773. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
