Festo
175830

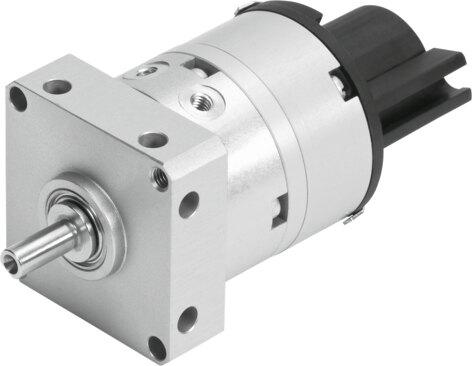

Rotary actuator DSM-6-180-P-A-FF
The Festo part number 175830 is a double-acting rotary vane industrial component featuring a size 6 design with an adjustment range of swivel angle from 0 degrees to 180 degrees and a precision adjustment of -5 degrees. This unit operates on compressed air as per ISO 8573-1:2010 [7:4:4] within an operating pressure of 0.35 MPa to 0.8 MPa and supports position sensing via a proximity switch. It accommodates a maximum swivel frequency of 3 Hz at 6 bar, a repetition accuracy of 1 degree, a maximum stop force of 15 N, and a maximum axial force of 10 N across an ambient temperature range of 0 °C to 60 °C. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 175830
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 175830.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 6
- Cushioning angle
- 0 deg
- Adjustment range of swivel angle
- 0 deg...180 deg
- Swivel angle
- 0 deg...180 deg
- Permissible stop radius
- 10 mm
- Mounting position
- Any
- Precision adjustment
- -5 deg
- Mode of operation
- Double-acting
- Structural design
- Rotary vane
- Position sensing
- Via proximity switch
- Operating pressure
- 0.35 MPa...0.8 MPa | 3.5 bar...8 bar
- Max. swivel frequency at 6 bar
- 3 Hz
- Repetition accuracy
- 1 deg
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- 0 °C...60 °C
- Max. stop force
- 15 N
- Max. axial force
- 10 N
- Max. radial force
- 15 N
- Theoretical torque at 6 bar
- 0.15 Nm
- Permissible mass moment of inertia
- 0.00065 kgm²
- Product weight
- 85 g
- Type of mounting
- With internal thread
- Pneumatic connection
- M3
- Covering material
- PA-reinforced
- Note on materials
- RoHS compliant
- Drive shaft material
- high-alloy stainless steel
- Seals material
- TPE-U(PU)
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 175830. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
