Festo
175833

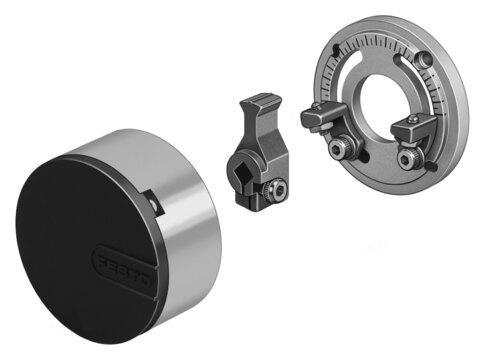

Stop kit KSM-6
The Festo 175833 is an industrial component featuring a size 6 structural design with a stop lever and an anodized aluminum housing combined with PA-reinforced covering material. It provides a swivel angle of 180 degrees with an adjustment range of 0 degrees to 180 degrees, a precision adjustment of -5 degrees, and high-alloy stainless steel stops, while operating within an ambient temperature range of 0 °C to 60 °C in any mounting position without position sensing. Weighing 30 g and conforming to VDMA24364-B1/B2-L LABS standards, this unit integrates smoothly into automated systems. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 175833
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 175833.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 6
- Adjustment range of swivel angle
- 0 deg...180 deg
- Swivel angle
- 180 deg
- Mounting position
- Any
- Precision adjustment
- -5 deg
- Structural design
- Stop lever
- Position sensing
- None
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- 0 °C...60 °C
- Product weight
- 30 g
- Covering material
- PA-reinforced
- Stops material
- high-alloy stainless steel
- Housing material
- Aluminum | Anodized
