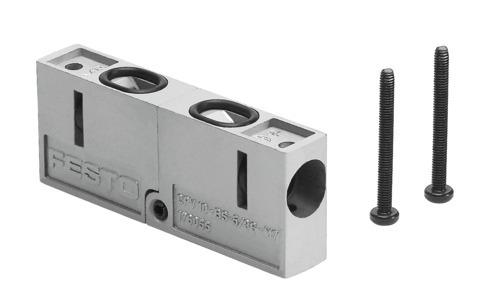

Reference imageConfirm configuration by manufacturer part number.
Festo
176055
Valve kit CPV10-BS-5/3G-M7
Festo Valve kit CPV10-BS-5/3G-M7, part number 176055, is documented in the official Festo United States product data sheet. Review the technical specifications and operating conditions below when requesting a quotation.
Request pricing and availabilityCommercial response for your destination and required quantity.
Request a Quote- Manufacturer
- Festo
- Part number
- 176055
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 176055.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationTechnical documents are stored and served from our system.
Verified configuration
Technical Specifications
Identification and family-level technical context are preserved from reviewed source evidence and official English-language manufacturer documentation.
- Valve function
- 5/3-way, closed
- Pneumatic working port
- M7
- Operating pressure
- 2.5 bar...10 bar
- Nominal width
- 4 mm
- Mounting position
- Any
- Burst pressure
- 30 bar
- Switching time off
- 30 ms
- On switching time
- 20 ms
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Shock resistance
- 30 g/11 ms as per EN 60068-2-27
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Temperature of medium
- -10 °C...60 °C
- Ambient temperature
- -10 °C...60 °C
- Product weight
- 23 g
- Type of mounting
- With through-hole
- Pneumatic connection 2
- M7
- Note on materials
- RoHS compliant
- Seals material
- NBR
- Housing material
- Die-cast zinc
