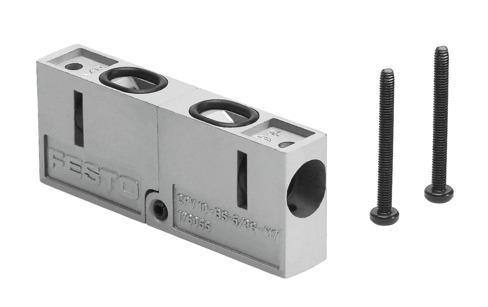

Reference imageConfirm configuration by manufacturer part number.
Festo
176057
Valve kit CPV14-BS-5/3G-1/8
The Festo 176057 is a 5/3-way closed industrial component featuring a 6 mm nominal width, G1/8 pneumatic working ports, and an operating pressure range of 2.5 bar to 10 bar. Designed for through-hole mounting in any position, it delivers a 22 ms on-switching time and a 30 ms off-switching time while operating within a medium and ambient temperature range of -10 °C to 60 °C. Constructed with NBR seals and RoHS-compliant materials, this 190 g unit supports compressed air media per ISO 8573-1:2010 [7:4:4] and accommodates oil lubrication for continued operation. Submit part number 176057, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 176057
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 176057.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/3-way, closed
- Pneumatic working port
- G1/8
- Operating pressure
- 2.5 bar...10 bar
- Nominal width
- 6 mm
- Mounting position
- Any
- Burst pressure
- 30 bar
- Switching time off
- 30 ms
- On switching time
- 22 ms
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Shock resistance
- 30 g/11 ms as per EN 60068-2-27
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Temperature of medium
- -10 °C...60 °C
- Ambient temperature
- -10 °C...60 °C
- Product weight
- 190 g
- Type of mounting
- With through-hole
- Pneumatic connection 2
- G1/8
- Note on materials
- RoHS compliant
- Seals material
- NBR
- Housing material
- Die-cast zinc
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 176057. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
