Festo
176061

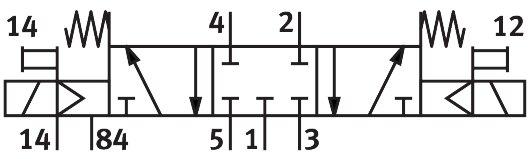

Air solenoid valve CPV18-M1H-5/3GS-1/4
The Festo part number 176061 is an electrical 5/3-way closed industrial component featuring an 18 mm valve size, an 8 mm nominal width, and a piston gate valve structural design with a soft sealing principle. Operating at 24V DC, this piloted unit delivers a normal nominal flow rate of 1400 l/min across an operating pressure range of -0.09 MPa to 1 MPa, incorporating internal or external pilot air supply ports, G1/4 pneumatic working ports, a mechanical spring reset method, and an IP65 degree of protection with C-Tick certification. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 176061
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 176061.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/3-way, closed
- Actuation type
- Electrical
- Valve size
- 18 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 1400 l/min
- Pneumatic working port
- G1/4
- Operating voltage
- 24V DC
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Structural design
- Piston gate valve
- Reset method
- Mechanical spring
- Certication
- C-Tick
- Degree of protection
- IP65
- Nominal width
- 8 mm
- Exhaust air function
- Cannot be throttled
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting | Non-detenting
- Type of control
- Piloted
- Pilot air supply port
- External | Internal
- Flow direction
- Non-reversible
- Lap
- Positive overlap
- Pilot pressure MPa
- 0.35 MPa...0.8 MPa
- Pilot pressure
- 3.5 bar...8 bar
- b-value
- 0.4
- C value
- 5.66 l/sbar
- Switching time off
- 32 ms
- On switching time
- 14 ms
- Duty cycle
- 100%
- Electrical power consumption
- 1.5 W
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 176061. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
