Festo
176850

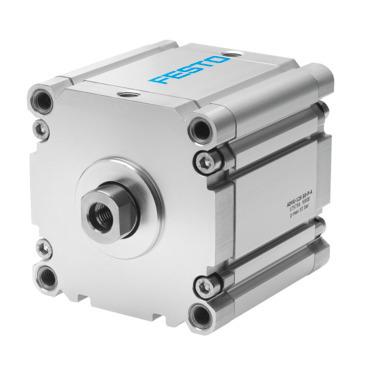

Compact air cylinder ADVU-125- -P-A-R3
The Festo part number 176850 is a double-acting industrial component featuring a 125 mm piston diameter, an adjustable stroke length from 1 mm to 400 mm, and internal threading on the piston rod end. Operating on compressed air within a pressure range of 0.05 MPa to 1 MPa (0.5 bar to 10 bar or 7.25 psi to 145 psi), this unit incorporates elastic cushioning rings at both ends, position sensing for proximity sensors, and a high corrosion resistance class (CRC 3) for demanding environments. It delivers a theoretical advancing force of 7363 N and a retracting force of 6881 N at 6 bar, while functioning across an ambient temperature range of -20 °C to 80 °C in any mounting position. Please submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 176850
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 176850.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 1 mm...400 mm
- Piston diameter
- 125 mm
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Mode of operation
- Double-acting
- Piston rod end
- Internal thread
- Structural design
- Piston | Piston rod
- Position sensing
- For proximity sensor
- Variants
- High corrosion protection
- Operating pressure
- 0.05 MPa...1 MPa | 0.5 bar...10 bar | 7.25 psi...145 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 3 - High corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -20 °C...80 °C
- Impact energy in the end positions
- 3.3 J
- Theoretical force at 6 bar, retracting
- 6881 N
- Theoretical force at 6 bar, advancing
- 7363 N
- Moving mass at 0 mm stroke
- 1317 g
- Additional moving mass per 10 mm stroke
- 63 g
- Basic weight with 0 mm stroke
- 3426 g
- Additional weight per 10 mm stroke
- 168 g
- Type of mounting
- Optionally: | With through-hole | With accessories
- Pneumatic connection
- G1/4
- Flange screws material
- High-alloy stainless steel
- Cover material
- Wrought aluminum alloy
- Material of dynamic seals
- NBR | TPE-U(PU)
