Festo
176886

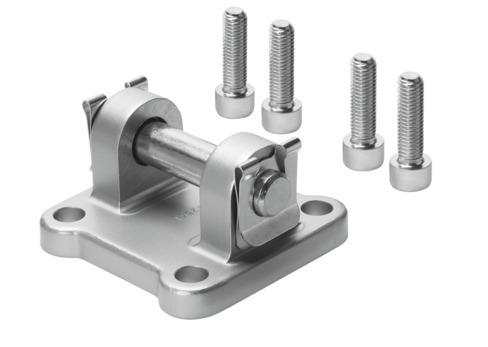

Clevis flange SUA-32-R3
The Festo 176886 industrial component features a size 32 design with high corrosion protection and a corrosion resistance class of CRC 3, supporting any mounting position. Constructed with a wrought aluminum alloy and protective-coated mounting material, high-alloy stainless steel bolts, screws, fuse, and shaft, a spring steel sleeve, and a polymer bearing, this 135 g RoHS-compliant unit meets VDMA24364-B1/B2-L LABS conformity. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 176886
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 176886.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 32
- Mounting position
- Any
- Variants
- High corrosion protection
- Corrosion resistance class (CRC)
- 3 - High corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Product weight
- 135 g
- Note on materials
- RoHS-compliant
- Mounting material
- Wrought aluminum alloy | With protective coating
- Bolt material
- High-alloy stainless steel
- Sleeve material
- Spring steel
- Material of bearing
- Polymer
- Material of screws
- High-alloy stainless steel
- Fuse material
- High-alloy stainless steel
- Shaft material
- High-alloy stainless steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 176886. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
