Festo
176945

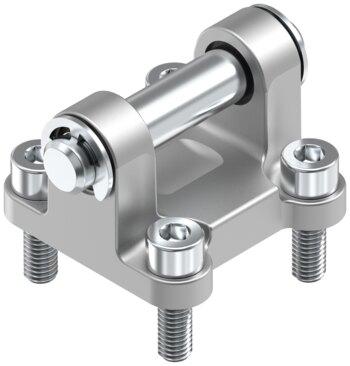

Clevis flange SNCB-40-R3
The Festo 176945 industrial component features size 40 construction based on the ISO 15552 norm and includes variants for high corrosion protection with a CRC rating of 3. This RoHS-compliant unit weighs 151 g, operates in ambient temperatures from -40 °C to 90 °C, and supports a maximum load capacity of 1.5 kN. Built with die-cast aluminum and protective-coated mounting material, high-alloy stainless steel bolts and screws, polymer bearings, galvanized steel discs, and galvanized spring steel fuses, it adheres to VDMA24364-B1/B2-L LABS conformity and specific Li-ion battery production material exclusions. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 176945
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 176945.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 40
- Based on norm
- ISO 15552
- Variants
- High corrosion protection
- Corrosion resistance class (CRC)
- 3 - High corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Suitability for the production of Li-ion batteries
- Metals with more than 5% by mass of copper, zinc or nickel are excluded | from use. The exceptions are nickel in steel, chemically nickel-plated | surfaces, printed circuit boards, cables, electrical plug connectors and | coils.
- Ambient temperature
- -40 °C...90 °C
- Max. load capacity
- 1.5 kN
- Product weight
- 151 g
- Note on materials
- RoHS compliant
- Mounting material
- Die-cast aluminum | With protective coating
- Bolt material
- high-alloy stainless steel
- Material of bearing
- Polymer
- Disc material
- Steel, galvanized
- Material of screws
- high-alloy stainless steel
- Fuse material
- Spring steel, galvanized
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 176945. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
