176946

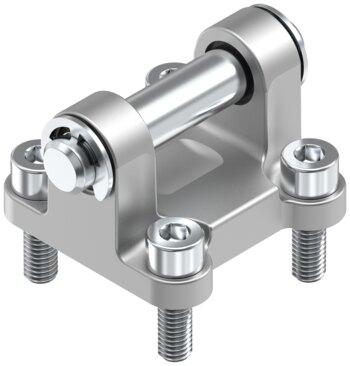

Name: Festo 176946 Clevis flange SNCB-50-R3
Brand: Festo

Clevis flange SNCB-50-R3

The Festo part number 176946 is a size 50 industrial component based on the ISO 15552 norm featuring high corrosion protection and a CRC rating of 3 for high corrosion stress. Weighing 228 g with a maximum load capacity of 2.5 kN, this unit operates within an ambient temperature range of -40 °C to 90 °C and conforms to VDMA24364-B1/B2-L LABS conformity. The assembly incorporates RoHS compliant materials including a die-cast aluminum mounting with protective coating, high-alloy stainless steel bolts and screws, polymer bearing, galvanized steel discs, and galvanized spring steel fuses, while excluding certain metals over 5% mass of copper, zinc, or nickel for Li-ion battery production suitability. Submit the exact part number, quantity, and application requirements to receive a formal quotation.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 176946
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 176946.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Size: 50
Based on norm: ISO 15552
Variants: High corrosion protection
Corrosion resistance class (CRC): 3 - High corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Suitability for the production of Li-ion batteries: Metals with more than 5% by mass of copper, zinc or nickel are excluded | from use. The exceptions are nickel in steel, chemically nickel-plated | surfaces, printed circuit boards, cables, electrical plug connectors and | coils.
Ambient temperature: -40 °C...90 °C
Max. load capacity: 2.5 kN
Product weight: 228 g
Note on materials: RoHS compliant
Mounting material: Die-cast aluminum | With protective coating
Bolt material: high-alloy stainless steel
Material of bearing: Polymer
Disc material: Steel, galvanized
Material of screws: high-alloy stainless steel
Fuse material: Spring steel, galvanized

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 176946. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
