Festo
176947

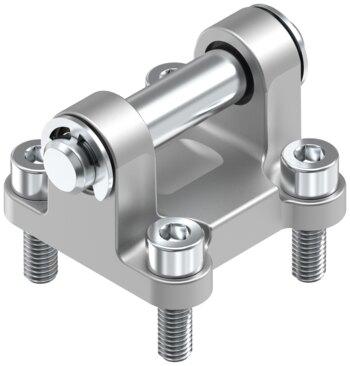

Clevis flange SNCB-63-R3
The Festo part number 176947 is a size 63 industrial component based on the ISO 15552 norm featuring high corrosion protection and a corrosion resistance class of CRC 3. Constructed with a die-cast aluminum mounting material with a protective coating, high-alloy stainless steel bolts and screws, polymer bearings, galvanized steel discs, and galvanized spring steel fuses, this RoHS-compliant unit weighs 371 g. It operates within an ambient temperature range of -40 °C to 90 °C, supports a maximum load capacity of 4 kN, complies with VDMA24364-B1/B2-L LABS conformity, and adheres to specific material restrictions for the production of Li-ion batteries. Submit the exact part number, quantity, and application requirements to request a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 176947
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 176947.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 63
- Based on norm
- ISO 15552
- Variants
- High corrosion protection
- Corrosion resistance class (CRC)
- 3 - High corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Suitability for the production of Li-ion batteries
- Metals with more than 5% by mass of copper, zinc or nickel are excluded | from use. The exceptions are nickel in steel, chemically nickel-plated | surfaces, printed circuit boards, cables, electrical plug connectors and | coils.
- Ambient temperature
- -40 °C...90 °C
- Max. load capacity
- 4 kN
- Product weight
- 371 g
- Note on materials
- RoHS compliant
- Mounting material
- Die-cast aluminum | With protective coating
- Bolt material
- high-alloy stainless steel
- Material of bearing
- Polymer
- Disc material
- Steel, galvanized
- Material of screws
- high-alloy stainless steel
- Fuse material
- Spring steel, galvanized
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 176947. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
