Festo
176950

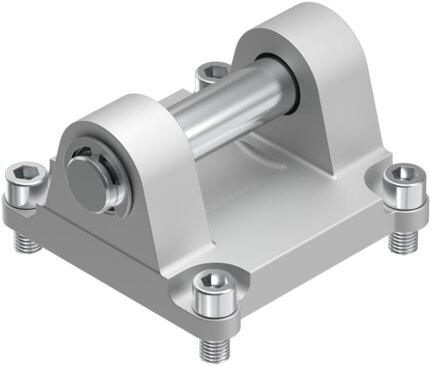

Clevis flange SNCB-125-R3
This Festo industrial component, part number 176950, is a size 125 unit based on the ISO 15552 norm and features high corrosion protection with a CRC 3 rating and VDMA24364-B1/B2-L LABS conformity. Constructed with die-cast aluminum and protective-coated mounting material, high-alloy stainless steel bolts and screws, polymer bearings, galvanized steel discs, and galvanized spring steel fuses, it operates within an ambient temperature range of -40 °C to 90 °C and weighs 1781 g. The RoHS-compliant unit excludes metals containing more than 5% by mass of copper, zinc, or nickel from use, with specific material exceptions for lithium-ion battery production. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 176950
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 176950.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 125
- Based on norm
- ISO 15552
- Variants
- High corrosion protection
- Corrosion resistance class (CRC)
- 3 - High corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Suitability for the production of Li-ion batteries
- Metals with more than 5% by mass of copper, zinc or nickel are excluded | from use. The exceptions are nickel in steel, chemically nickel-plated | surfaces, printed circuit boards, cables, electrical plug connectors and | coils.
- Ambient temperature
- -40 °C...90 °C
- Product weight
- 1781 g
- Note on materials
- RoHS compliant
- Mounting material
- Die-cast aluminum | With protective coating
- Bolt material
- high-alloy stainless steel
- Material of bearing
- Polymer
- Disc material
- Steel, galvanized
- Material of screws
- high-alloy stainless steel
- Fuse material
- Spring steel, galvanized
