Festo
1775324

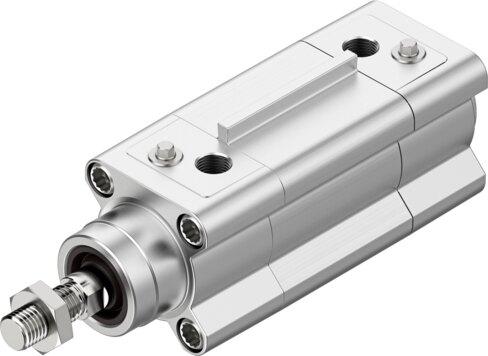

ISO cylinder DSBF-C-63- -PPVA-N3-R
The Festo 1775324 is a double-acting industrial component featuring a 63 mm piston diameter, an M16x1.5 piston rod thread, and an adjustable pneumatic cushioning system at both ends with a 22 mm cushioning length. Conforming to ISO 15552, this profile barrel actuator operates within a pressure range of 0.04 MPa to 1.2 MPa and delivers a theoretical force of 1870 N advancing and 1682 N retracting at 6 bar using compressed air according to ISO 8573-1:2010 [7:4:4]. Built with a corrosion resistance class of 3 for high corrosion stress and an ambient temperature range of -20 °C to 80 °C, it supports position sensing via proximity switch and allows installation in any mounting position. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1775324
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1775324.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 1 mm...2800 mm
- Piston diameter
- 63 mm
- Piston rod thread
- M16x1.5
- Cushioning
- Pneumatic cushioning, adjustable at both ends
- Mounting position
- Any
- Conforms to standard
- ISO 15552
- Piston rod end
- External thread
- Structural design
- Piston | Piston rod | Prole barrel
- Position sensing
- Via proximity switch
- Operating pressure
- 0.04 MPa...1.2 MPa | 0.4 bar...12 bar
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 3 - High corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -20 °C...80 °C
- Impact energy in the end positions
- 1.3 J
- Cushioning length
- 22 mm
- Theoretical force at 6 bar, retracting
- 1682 N
- Theoretical force at 6 bar, advancing
- 1870 N
- Moving mass at 0 mm stroke
- 460 g
- Additional moving mass per 10 mm stroke
- 25 g
- Basic weight with 0 mm stroke
- 1803 g
- Additional weight per 10 mm stroke
- 65 g
- Type of mounting
- Alternatively: | With internal thread | With accessories
- Pneumatic connection
- G3/8
- Note on materials
- RoHS compliant
- Cover material
- Die-cast aluminum, coated
