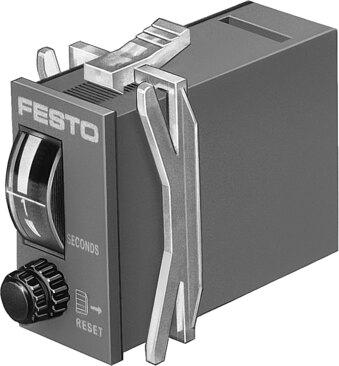

Reference imageConfirm configuration by manufacturer part number.
Festo
177616
Timer PZVT-120-SEC
The Festo 177616 is a mechanical sequence counter featuring a pneumatic actuator, front panel mounting via M5 internal thread, and an ABS housing with an IP54 degree of protection when utilizing a protective cap and panel frame. Operating within a pressure range of 2 bar to 6 bar, it provides an adjustable delay time of 8 s to 120 s with a setting accuracy of ± 3 s, a 200 ms pause period for reset, and a normal nominal flow rate of 50 l/min using compressed air as per ISO 8573-1:2010 [7:4:4]. This RoHS compliant component operates without oil lubrication and is rated for ATEX Zone 1, Zone 2, Zone 21, and Zone 22 hazardous environments within an ambient temperature range of -10 °C to 60 °C. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 177616
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 177616.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Structural design
- Mechanical sequence counter with pneumatic actuator
- Switch-off pressure
- 0.1 bar
- Operating pressure
- 2 bar...6 bar
- Switch-on pressure
- 1.6 bar
- Normal nominal ow rate (normalized to DIN 1343)
- 50 l/min
- Adjustable delay time
- 8 s...120 s
- Setting accuracy
- ± 3 s
- Pause period for reset
- 200 ms
- Repetition accuracy of time setting
- ± 1.2 s
- Explosion prevention and protection
- Zone 1 (ATEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 22 (ATEX)
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication not possible
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Degree of protection
- IP54 | With protective cap and panel frame | As per IEC 60529
- Ambient temperature
- -10 °C...60 °C
- Product weight
- 45 g
- Type of mounting
- Front panel mounting
- Pneumatic connection
- Internal thread M5
- Note on materials
- RoHS compliant
- Housing material
- ABS
