Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com
Reference imageConfirm configuration by manufacturer part number.

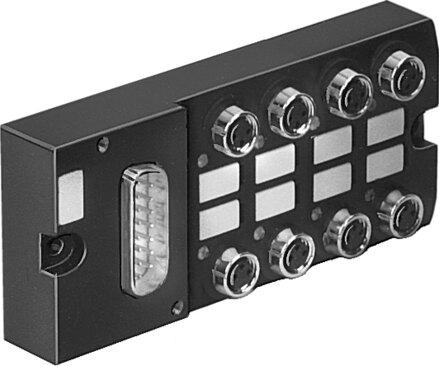

Festo
177669
Multi-pin plug distributor MPV-E/A08-M8
The Festo 177669 is an industrial component weighing 100 g with a reinforced PA6 housing and brass sockets. It features M8, 3-pin I/O electrical connections supporting a DC operating voltage range of 10 V to 30 V, an acceptable current load of 1 A per slot, and a 4 A current rating. Offering IP65 protection in the mounted state per IEC 60529 and VDMA24364-B2-L LABS conformity, this unit operates in ambient temperatures from -20 °C to 80 °C and mounts alternatively via through-hole or on a DIN rail. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 177669
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 177669.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Type of mounting
- Alternatively: | With through-hole | With DIN rail
- Product weight
- 100 g
- Electrical connection technology I/O
- M8 | 3-pin
- DC operating voltage range
- 10 V...30 V
- Acceptable current load per slot
- 1 A
- Current rating
- 4 A
- Degree of protection
- IP65 | In mounted state | As per IEC 60529
- Ambient temperature
- -20 °C...80 °C
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Housing material
- Reinforced PA6
- Socket material
- Brass
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 177669. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
