177670

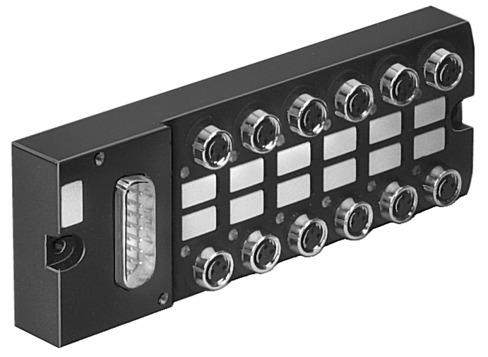

Name: Festo 177670 Multi-pin plug distributor MPV-E/A12-M8
Brand: Festo

Multi-pin plug distributor MPV-E/A12-M8

The Festo part number 177670 is an industrial component featuring a reinforced PA6 housing with a brass socket and weighing 120 g. It offers alternative mounting with a through-hole or DIN rail, operating on a DC voltage range of 10 V to 30 V with an M8, 3-pin electrical connection technology for I/O. This component supports a 4 A current rating and a 1 A acceptable current load per slot within an ambient temperature range of -20 °C to 80 °C, while achieving IP65 protection in the mounted state as per IEC 60529 and conforming to VDMA24364-B2-L LABS (PWIS). Submit the exact part number, quantity, and application requirements for a formal quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 177670
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 177670.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Type of mounting: Alternatively: | With through-hole | With DIN rail
Product weight: 120 g
Electrical connection technology I/O: M8 | 3-pin
DC operating voltage range: 10 V...30 V
Acceptable current load per slot: 1 A
Current rating: 4 A
Degree of protection: IP65 | In mounted state | As per IEC 60529
Ambient temperature: -20 °C...80 °C
LABS (PWIS) conformity: VDMA24364-B2-L
Housing material: Reinforced PA6
Socket material: Brass
