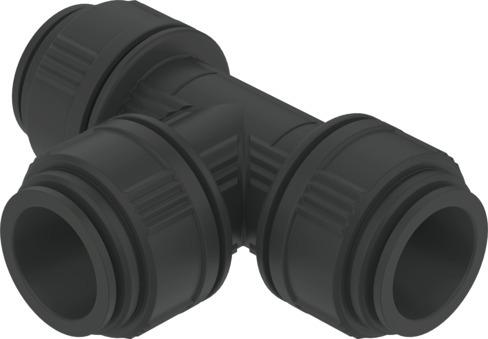

Reference imageConfirm configuration by manufacturer part number.
Festo
177688
Push-in T-connector CQT-15
The Festo 177688 is a 30 g industrial component featuring a structural design based on the push-pull principle with a nominal width of 12 mm, one supply line, and two outlets configured for 15 mm outside diameter piping systems or pneumatic tubing. Constructed with a POM housing and releasing ring, this component operates within an ambient temperature range of -25 °C to 70 °C and handles compressed air according to ISO 8573-1:2010 [7:-:-] at operating pressures from -0.95 bar to 7 bar across the full temperature range, or up to 15 bar temperature-dependently. It is rated for moderate corrosion stress (CRC 2) and VDMA24364 Zone III LABS conformity, with oil-lubricated operation supported where required for further use. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 177688
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 177688.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal width
- 12 mm
- Mounting position
- Any
- Pack size
- 1
- Structural design
- Push-pull principle
- Operating pressure for entire temperature range
- -0.95 bar...7 bar
- Temperature-dependent operating pressure
- -0.95 bar...15 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- For use in the food industry
- See supplementary material information
- Ambient temperature
- -25 °C...70 °C
- Product weight
- 30 g
- No. of outlets
- 2
- No. of supply lines
- 1
- Pneumatic connection 1
- For piping system/pneumatic tubing outside diameter of 15 mm
- Pneumatic connection 2
- for piping system/pneumatic tubing outside diameter of 15 mm
- Note on materials
- RoHS compliant
- Housing material
- POM
- Releasing ring material
- POM
- Material of tube retaining claw
- high-alloy stainless steel
