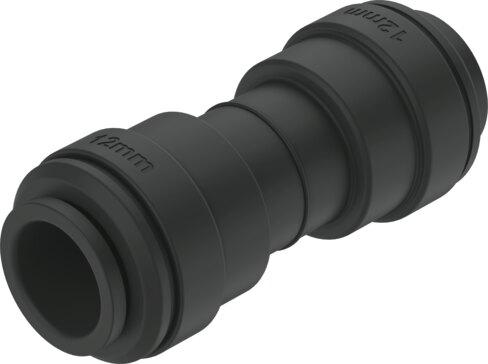

Reference imageConfirm configuration by manufacturer part number.
Festo
177696
Push-in connector CQ-15
The Festo 177696 is an industrial component featuring a nominal width of 12 mm, a push-pull structural design, and a pack size of 1. Weighing 18 g, this part utilizes a POM housing and releasing ring alongside a high-alloy stainless steel tube retaining claw to connect a 15 mm pneumatic tubing outside diameter to another 15 mm pneumatic tubing outside diameter. It operates within a temperature range of -25 °C to 70 °C and handles an operating pressure from -0.95 bar to 7 bar across the entire temperature range, or -0.95 bar to 15 bar depending on the temperature, using compressed air as per ISO 8573-1:2010 [7:-:-]. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 177696
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 177696.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal width
- 12 mm
- Mounting position
- Any
- Pack size
- 1
- Structural design
- Push-pull principle
- Operating pressure for entire temperature range
- -0.95 bar...7 bar
- Temperature-dependent operating pressure
- -0.95 bar...15 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- For use in the food industry
- See supplementary material information
- Ambient temperature
- -25 °C...70 °C
- Product weight
- 18 g
- Pneumatic connection 1
- For piping system/pneumatic tubing outside diameter of 15 mm
- Pneumatic connection 2
- for piping system/pneumatic tubing outside diameter of 15 mm
- Note on materials
- RoHS compliant
- Housing material
- POM
- Releasing ring material
- POM
- Material of tube retaining claw
- high-alloy stainless steel
