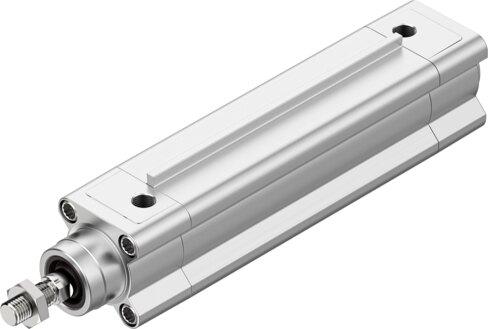

Reference imageConfirm configuration by manufacturer part number.
Festo
1779439
ISO cylinder DSBF-C-40-250-PPSA-N3-R
This Festo double-acting industrial component features a 40 mm piston diameter, a 250 mm stroke, and an M12x1.25 external piston rod thread, operating within a pressure range of 0.06 MPa to 1.2 MPa. Built with a profile barrel structural design conforming to ISO 15552, it utilizes self-adjusting pneumatic end-position cushioning, position sensing via proximity switch, and operates with compressed air according to ISO 8573-1:2010 [7:4:4] under ambient temperatures from -20 °C to 80 °C. The unit achieves a corrosion resistance class of 3 for high corrosion stress, VDMA24364-B2-L LABS conformity, and ISO 14644-1 Class 5 cleanroom suitability, delivering a theoretical force of 633 N at 6 bar retracting. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1779439
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1779439.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 250 mm
- Piston diameter
- 40 mm
- Piston rod thread
- M12x1.25
- Cushioning
- Self-adjusting pneumatic end-position cushioning
- Mounting position
- Any
- Conforms to standard
- ISO 15552
- Piston rod end
- External thread
- Structural design
- Piston | Piston rod | Prole barrel
- Position sensing
- Via proximity switch
- Operating pressure
- 0.06 MPa...1.2 MPa | 0.6 bar...12 bar
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 3 - High corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 5 according to ISO 14644-1
- Ambient temperature
- -20 °C...80 °C
- Impact energy in the end positions
- 0.7 J
- Cushioning length
- 19 mm
- Theoretical force at 6 bar, retracting
- 633 N
- Theoretical force at 6 bar, advancing
- 754 N
- Moving mass
- 604 g
- Moving mass at 0 mm stroke
- 204 g
- Additional moving mass per 10 mm stroke
- 16 g
- Product weight
- 1778 g
- Basic weight with 0 mm stroke
- 778 g
- Additional weight per 10 mm stroke
- 40 g
- Type of mounting
- Alternatively: | With internal thread | With accessories
