Festo
1781069

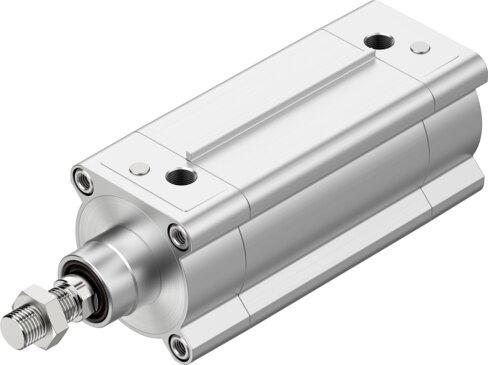

ISO cylinder DSBF-C-80-250-PPSA-N3-R
The Festo 1781069 is a double-acting industrial component featuring an 80 mm piston diameter, a 250 mm stroke, and an M20x1.5 external piston rod thread conforming to ISO 15552. Built with a piston, piston rod, and profile barrel structural design, it operates within a pressure range of 0.04 MPa to 1.2 MPa and delivers theoretical forces of 2721 N retracting and 3016 N advancing at 6 bar. This unit includes self-adjusting pneumatic end-position cushioning with a 31 mm cushioning length, position sensing via proximity switch, and a corrosion resistance class of 3 for high corrosion stress environments. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1781069
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1781069.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 250 mm
- Piston diameter
- 80 mm
- Piston rod thread
- M20x1.5
- Cushioning
- Self-adjusting pneumatic end-position cushioning
- Mounting position
- Any
- Conforms to standard
- ISO 15552
- Piston rod end
- External thread
- Structural design
- Piston | Piston rod | Prole barrel
- Position sensing
- Via proximity switch
- Operating pressure
- 0.04 MPa...1.2 MPa | 0.4 bar...12 bar
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 3 - High corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -20 °C...80 °C
- Impact energy in the end positions
- 1.8 J
- Cushioning length
- 31 mm
- Theoretical force at 6 bar, retracting
- 2721 N
- Theoretical force at 6 bar, advancing
- 3016 N
- Moving mass
- 1775 g
- Moving mass at 0 mm stroke
- 800 g
- Additional moving mass per 10 mm stroke
- 39 g
- Product weight
- 5506 g
- Basic weight with 0 mm stroke
- 3131 g
- Additional weight per 10 mm stroke
- 95 g
- Type of mounting
- Alternatively: | With internal thread | With accessories
- Pneumatic connection
- G3/8
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 1781069. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
