Festo
1781567

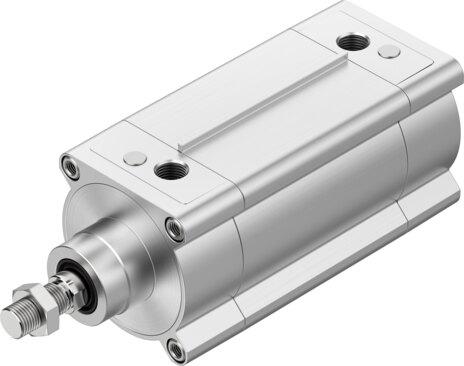

ISO cylinder DSBF-C-100- -PPSA-N3-R
The Festo 1781567 is a double-acting industrial component featuring a 100 mm piston diameter, an M20x1.5 piston rod thread, and an adjustable stroke ranging from 1 mm to 2800 mm based on ISO 15552 standards. Operating at pressures between 0.04 MPa and 1.2 MPa using compressed air conforming to ISO 8573-1:2010 [7:4:4], this profile-barrel cylinder achieves a theoretical advancing force of 4712 N and a retracting force of 4418 N at 6 bar. It incorporates self-adjusting pneumatic end-position cushioning with a 31 mm cushioning length, 2.5 J end-position impact energy, and position sensing via proximity switch for any mounting position. Built with CRC 3 high corrosion resistance and VDMA24364-B2-L LABS conformity, the unit functions within ambient temperatures from -20 °C to 80 °C and permits oil lubrication. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1781567
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1781567.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 1 mm...2800 mm
- Piston diameter
- 100 mm
- Piston rod thread
- M20x1.5
- Cushioning
- Self-adjusting pneumatic end-position cushioning
- Mounting position
- Any
- Conforms to standard
- ISO 15552
- Piston rod end
- External thread
- Structural design
- Piston | Piston rod | Prole barrel
- Position sensing
- Via proximity switch
- Operating pressure
- 0.04 MPa...1.2 MPa | 0.4 bar...12 bar
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 3 - High corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -20 °C...80 °C
- Impact energy in the end positions
- 2.5 J
- Cushioning length
- 31 mm
- Theoretical force at 6 bar, retracting
- 4418 N
- Theoretical force at 6 bar, advancing
- 4712 N
- Moving mass at 0 mm stroke
- 1045 g
- Additional moving mass per 10 mm stroke
- 39 g
- Basic weight with 0 mm stroke
- 4551 g
- Additional weight per 10 mm stroke
- 106 g
- Type of mounting
- Alternatively: | With internal thread | With accessories
- Pneumatic connection
- G1/2
- Note on materials
- RoHS compliant
- Cover material
- Die-cast aluminum, coated
