Festo
1782260

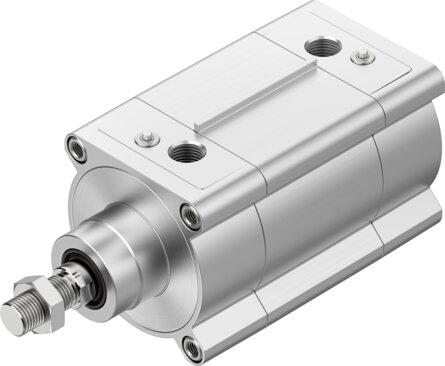

ISO cylinder DSBF-C-100-200-PPVA-N3-R
The Festo 1782260 is a double-acting industrial component featuring a 100 mm piston diameter and a 200 mm stroke conforming to ISO 15552. Built with a piston, piston rod, and profile barrel design, it utilizes an M20x1.5 external thread on the piston rod and includes adjustable pneumatic cushioning at both ends with a 31 mm cushioning length. This unit operates within a pressure range of 0.4 bar to 12 bar, delivering a theoretical force of 4712 N advancing and 4418 N retracting at 6 bar. Position sensing occurs via proximity switch, and the component is rated for a corrosion resistance class of 3 under ambient temperatures between -20 °C and 80 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1782260
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1782260.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 200 mm
- Piston diameter
- 100 mm
- Piston rod thread
- M20x1.5
- Cushioning
- Pneumatic cushioning, adjustable at both ends
- Mounting position
- Any
- Conforms to standard
- ISO 15552
- Piston rod end
- External thread
- Structural design
- Piston | Piston rod | Prole barrel
- Position sensing
- Via proximity switch
- Operating pressure
- 0.04 MPa...1.2 MPa | 0.4 bar...12 bar
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 3 - High corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -20 °C...80 °C
- Impact energy in the end positions
- 2.5 J
- Cushioning length
- 31 mm
- Theoretical force at 6 bar, retracting
- 4418 N
- Theoretical force at 6 bar, advancing
- 4712 N
- Moving mass
- 1825 g
- Moving mass at 0 mm stroke
- 1045 g
- Additional moving mass per 10 mm stroke
- 39 g
- Product weight
- 6671 g
- Basic weight with 0 mm stroke
- 4551 g
- Additional weight per 10 mm stroke
- 106 g
- Type of mounting
- Alternatively: | With internal thread | With accessories
- Pneumatic connection
- G1/2
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 1782260. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
