178409

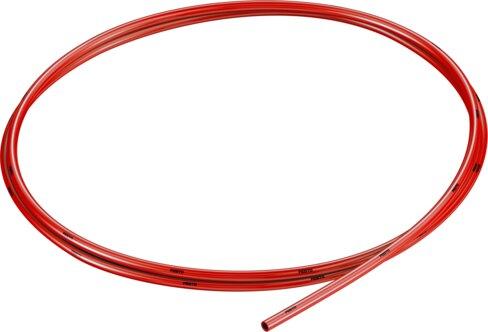

Name: Festo 178409 Plastic tubing PUN-3X0,5-RT
Brand: Festo

Plastic tubing PUN-3X0,5-RT

This Festo industrial component (Part Number 178409) is a red ester-based TPE-U pneumatic tubing featuring a 3 mm outside diameter, a 2.1 mm inside diameter, and a weight of 0.0044 kg/m. Suitable for energy chains, it operates at pressures from -0.95 bar to 7 bar across its full temperature range of -35 °C to 60 °C, and handles up to 10 bar under temperature-dependent conditions. The tubing is certified by TÜV (certificate B 013277 0527 00), complies with RoHS, and uses compressed air as an operating medium per ISO 8573-1:2010 [7:-:-]. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 178409
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 178409.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Outside diameter: 3 mm
Bending radius relevant for ow rate: 12 mm
Inside diameter: 2.1 mm
Min. bending radius: 9 mm
Application note: TPE-U, ester-based | The plastic tubing can only be installed in contact with cables if the | sheathing is free from phosphoric acid esters. Failure to observe this can | result in damage to the plastic tubing.
Tubing characteristics: Suitable for energy chains
Operating pressure for entire temperature range: -0.095 MPa...0.7 MPa | -0.95 bar...7 bar | -13.775 psi...101.5 psi
Temperature-dependent operating pressure: -0.095 MPa...1 MPa | -0.95 bar...10 bar | -13.775 psi...145 psi
Certication: TÜV
Certicate issuing authority: B 013277 0527 00
Operating medium: Compressed air as per ISO 8573-1:2010 [7:-:-]
Material re test: UL94 HB
LABS (PWIS) conformity: VDMA24364-B2-L
Ambient temperature: -35 °C...60 °C
Product weight by length: 0.0044 kg/m
Pneumatic connection: For plug connection outside diameter 3 mm | For barbed tting, inside diameter 2 mm
Color: Red
Shore hardness: D 52 +/-3
Note on materials: RoHS compliant
Material of pneumatic tubing: TPE-U(PU)
