178415

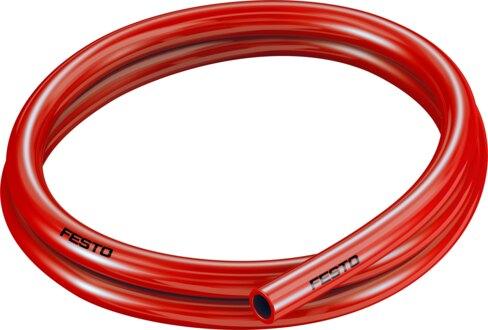

Name: Festo 178415 Plastic tubing PUN-16X2,5-RT
Brand: Festo

Plastic tubing PUN-16X2,5-RT

The Festo 178415 is a red industrial component made of ester-based TPE-U with an outside diameter of 16 mm, an inside diameter of 11 mm, and a weight of 0.1294 kg/m. Designed for compressed air operating media as per ISO 8573-1:2010 [7:-:-], this tubing features an operating pressure of -0.95 bar to 7 bar across its entire temperature range of -35 °C to 60 °C, and is suitable for energy chains with a minimum bending radius of 45 mm. It holds TÜV certification under authority B 013277 0527 00, complies with RoHS and UL94 HB material fire tests, and requires that cable sheathing remain free from phosphoric acid esters during installation. Submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 178415
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 178415.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Outside diameter: 16 mm
Bending radius relevant for ow rate: 88 mm
Inside diameter: 11 mm
Min. bending radius: 45 mm
Application note: TPE-U, ester-based | The plastic tubing can only be installed in contact with cables if the | sheathing is free from phosphoric acid esters. Failure to observe this can | result in damage to the plastic tubing.
Tubing characteristics: Suitable for energy chains
Operating pressure for entire temperature range: -0.095 MPa...0.7 MPa | -0.95 bar...7 bar | -13.775 psi...101.5 psi
Temperature-dependent operating pressure: -0.095 MPa...1 MPa | -0.95 bar...10 bar | -13.775 psi...145 psi
Certication: TÜV
Certicate issuing authority: B 013277 0527 00
Operating medium: Compressed air as per ISO 8573-1:2010 [7:-:-]
Material re test: UL94 HB
LABS (PWIS) conformity: VDMA24364-B2-L
Ambient temperature: -35 °C...60 °C
Product weight by length: 0.1294 kg/m
Pneumatic connection: For plug connection outside diameter 16 mm
Color: Red
Shore hardness: D 52 +/-3
Note on materials: RoHS compliant
Material of pneumatic tubing: TPE-U(PU)

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 178415. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
