Festo
178423

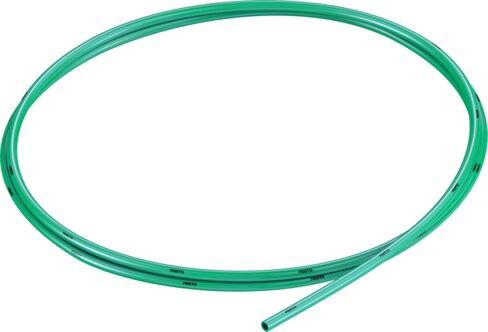

Plastic tubing PUN-3X0,5-GN
The Festo 178423 is a green ester-based TPE-U industrial component featuring an outside diameter of 3 mm, an inside diameter of 2.1 mm, and a weight of 0.0044 kg/m. Designed with a Shore hardness of D 52 +/-3 and UL94 HB material fire test compliance, it operates within a temperature range of -35 °C to 60 °C and supports pneumatic connections for 3 mm outside diameter plug connections or 2 mm inside diameter barbed fittings. This TÜV certified tubing maintains an operating pressure of -0.095 MPa to 0.7 MPa across its entire temperature range and is suitable for energy chains when installed away from phosphoric acid ester cable sheathing. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 178423
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 178423.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Outside diameter
- 3 mm
- Bending radius relevant for ow rate
- 12 mm
- Inside diameter
- 2.1 mm
- Min. bending radius
- 9 mm
- Application note
- TPE-U, ester-based | The plastic tubing can only be installed in contact with cables if the | sheathing is free from phosphoric acid esters. Failure to observe this can | result in damage to the plastic tubing.
- Tubing characteristics
- Suitable for energy chains
- Operating pressure for entire temperature range
- -0.095 MPa...0.7 MPa | -0.95 bar...7 bar | -13.775 psi...101.5 psi
- Temperature-dependent operating pressure
- -0.095 MPa...1 MPa | -0.95 bar...10 bar | -13.775 psi...145 psi
- Certication
- TÜV
- Certicate issuing authority
- B 013277 0527 00
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Material re test
- UL94 HB
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -35 °C...60 °C
- Product weight by length
- 0.0044 kg/m
- Pneumatic connection
- For plug connection outside diameter 3 mm | For barbed tting, inside diameter 2 mm
- Color
- Green
- Shore hardness
- D 52 +/-3
- Note on materials
- RoHS compliant
- Material of pneumatic tubing
- TPE-U(PU)
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 178423. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
