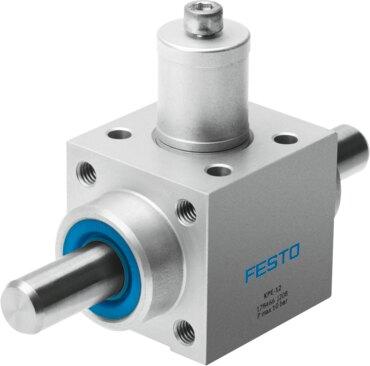

Reference imageConfirm configuration by manufacturer part number.
Festo
178465
Clamping unit KPE-10
The Festo 178465 is an industrial component featuring a tilting plate structural design with a single-end piston rod and a mounting position in any orientation. It provides a static holding force of 350 N for holding and stopping movement using a clamping type on both sides that is clamped by spring and released by compressed air at a release pressure of 3 bar. The unit operates within a pressure range of 0.3 MPa to 1 MPa and an ambient temperature range of -10 °C to 80 °C, utilizing an anodized aluminum housing, NBR and TPE-U seals, and a spring steel spring. Please submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 178465
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 178465.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Mounting position
- Any
- Clamping type with active direction
- Both sides | Clamped by spring, released by compressed air
- Structural design
- Tilting plate
- Variants
- Piston rod at one end
- Position sensing
- None
- Safety function
- Holding and stopping a movement
- Operating pressure
- 0.3 MPa...1 MPa | 3 bar...10 bar | 43.5 psi...145 psi
- Release pressure
- 0.3 MPa | 3 bar
- Round material to be clamped
- 10 mm
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -10 °C...80 °C
- Static holding force
- 350 N
- Product weight
- 260 g
- Note on materials
- RoHS compliant
- Seals material
- NBR | TPE-U(PU)
- Material of spring
- Spring steel
- Housing material
- Aluminum | Anodized
- Clamping jaws material
- Brass
- Material of piston
- POM
