Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com
Reference imageConfirm configuration by manufacturer part number.
Festo
178466

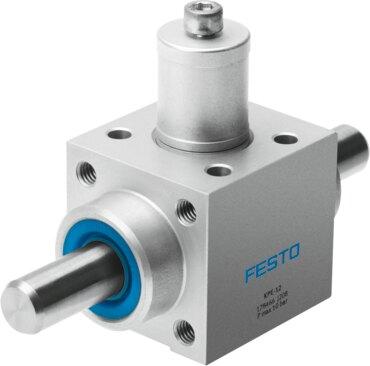

Clamping unit KPE-12
The Festo part number 178466 is an industrial component featuring a tilting plate structural design with a piston rod at one end and a 12 mm round material clamping capacity. Operating with compressed air as per ISO 8573-1:2010 [7:4:4] at 0.3 MPa to 1 MPa, this unit provides a static holding force of 600 N through a spring-clamped and air-released active direction on both sides. Constructed with an anodized aluminum housing, spring steel spring, and NBR and TPE-U(PU) seals, it achieves a corrosion resistance class of CRC 2 and functions in ambient temperatures ranging from -10 °C to 80 °C with a product weight of 270 g. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 178466
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 178466.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Mounting position
- Any
- Clamping type with active direction
- Both sides | Clamped by spring, released by compressed air
- Structural design
- Tilting plate
- Variants
- Piston rod at one end
- Position sensing
- None
- Safety function
- Holding and stopping a movement
- Operating pressure
- 0.3 MPa...1 MPa | 3 bar...10 bar | 43.5 psi...145 psi
- Release pressure
- 0.3 MPa | 3 bar
- Round material to be clamped
- 12 mm
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -10 °C...80 °C
- Static holding force
- 600 N
- Product weight
- 270 g
- Note on materials
- RoHS compliant
- Seals material
- NBR | TPE-U(PU)
- Material of spring
- Spring steel
- Housing material
- Aluminum | Anodized
- Clamping jaws material
- Brass
- Material of piston
- POM
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 178466. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
