178467

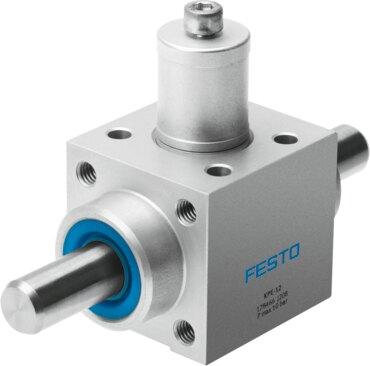

Name: Festo 178467 Clamping unit KPE-16
Brand: Festo

Clamping unit KPE-16

The Festo part number 178467 is an industrial component featuring a tilting plate structural design with a single-end piston rod and a clamping type that operates on both sides via spring clamping and compressed air release. This unit provides a static holding force of 1000 N for a 16 mm round material, operating within a pressure range of 0.3 MPa to 1 MPa and an ambient temperature span of -10 °C to 80 °C. Constructed with NBR and TPE-U seals, a spring steel spring, and a CRC 2 moderate corrosion resistance rating, the 410 g assembly functions with compressed air conforming to ISO 8573-1:2010 [7:4:4] and accommodates oil lubrication. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 178467
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 178467.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Mounting position: Any
Clamping type with active direction: Both sides | Clamped by spring, released by compressed air
Structural design: Tilting plate
Variants: Piston rod at one end
Position sensing: None
Safety function: Holding and stopping a movement
Operating pressure: 0.3 MPa...1 MPa | 3 bar...10 bar | 43.5 psi...145 psi
Release pressure: 0.3 MPa | 3 bar
Round material to be clamped: 16 mm
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 2 - Moderate corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Ambient temperature: -10 °C...80 °C
Static holding force: 1000 N
Product weight: 410 g
Clamping unit release connection: G1/8
Note on materials: RoHS compliant
Seals material: NBR | TPE-U(PU)
Material of spring: Spring steel
Housing material: Aluminum | Anodized
Clamping jaws material: Brass
Material of piston: POM

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 178467. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
