Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

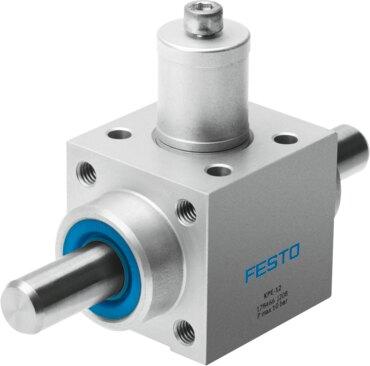

Reference imageConfirm configuration by manufacturer part number.
Festo
178470
Clamping unit KPE-32
The Festo 178470 is an industrial component featuring a tilting plate structural design with a single-end piston rod and a 32 mm round material clamping capacity. Delivering a static holding force of 7500 N, this unit utilizes a spring-loaded clamping type on both sides that is released by compressed air via a G1/8 connection at a minimum release pressure of 0.3 MPa. Built with NBR and TPE-U seals, a spring steel spring, and a corrosion resistance class of CRC 2, it operates within a pressure range of 0.3 MPa to 1 MPa and an ambient temperature range of -10 °C to 80 °C in any mounting position. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 178470
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 178470.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Mounting position
- Any
- Clamping type with active direction
- Both sides | Clamped by spring, released by compressed air
- Structural design
- Tilting plate
- Variants
- Piston rod at one end
- Position sensing
- None
- Safety function
- Holding and stopping a movement
- Operating pressure
- 0.3 MPa...1 MPa | 3 bar...10 bar | 43.5 psi...145 psi
- Release pressure
- 0.3 MPa | 3 bar
- Round material to be clamped
- 32 mm
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -10 °C...80 °C
- Static holding force
- 7500 N
- Product weight
- 4600 g
- Clamping unit release connection
- G1/8
- Note on materials
- RoHS compliant
- Seals material
- NBR | TPE-U(PU)
- Material of spring
- Spring steel
- Housing material
- Aluminum | Anodized
- Clamping jaws material
- Brass
- Material of piston
- POM
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 178470. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
