Festo
1792963

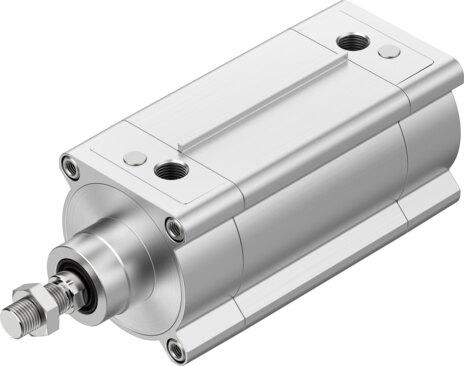

ISO cylinder DSBF-C-125-400-PPSA-N3-R
The Festo 1792963 is a double-acting industrial component featuring a 125 mm piston diameter, a 400 mm stroke, and an external M27x2 piston rod thread conforming to ISO 15552. Built with a profile barrel structural design and self-adjusting pneumatic end-position cushioning, it operates within a pressure range of 0.02 MPa to 1 MPa and supports position sensing via proximity switch. This unit achieves a corrosion resistance class of 3 for high corrosion stress, functions across an ambient temperature range of -20 °C to 80 °C, and delivers theoretical forces of 7363 N advancing and 6881 N retracting at 6 bar. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1792963
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1792963.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 400 mm
- Piston diameter
- 125 mm
- Piston rod thread
- M27x2
- Cushioning
- Self-adjusting pneumatic end-position cushioning
- Mounting position
- Any
- Conforms to standard
- ISO 15552
- Piston rod end
- External thread
- Structural design
- Piston | Piston rod | Prole barrel
- Position sensing
- Via proximity switch
- Operating pressure
- 0.02 MPa...1 MPa | 0.2 bar...10 bar
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 3 - High corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -20 °C...80 °C
- Impact energy in the end positions
- 3.3 J
- Cushioning length
- 45 mm
- Theoretical force at 6 bar, retracting
- 6881 N
- Theoretical force at 6 bar, advancing
- 7363 N
- Moving mass
- 4765 g
- Moving mass at 0 mm stroke
- 2245 g
- Additional moving mass per 10 mm stroke
- 63 g
- Product weight
- 13448 g
- Basic weight with 0 mm stroke
- 6928 g
- Additional weight per 10 mm stroke
- 163 g
- Type of mounting
- Alternatively: | With internal thread | With accessories
- Pneumatic connection
- G1/2
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 1792963. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
