Festo
1806790

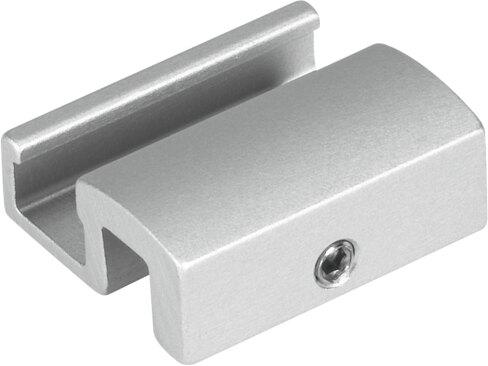

Mounting kit SMB-8-C
The Festo 1806790 is an industrial component designed for mounting rail installation, featuring a wrought aluminum alloy anodized retainer bracket and high-alloy stainless steel screws. This part provides a corrosion resistance class of 3 for high corrosion stress, VDMA24364-B2-L LABS conformity, and RoHS compliant materials while operating within an ambient temperature range of -40 °C to 120 °C. It utilizes a clamped and threaded pin mounting type with a product weight of 3.5 g and a tightening torque of 0.2 Nm to 0.6 Nm, with food industry usage detailed in the supplementary material information. Submit the exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1806790
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1806790.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Design
- For mounting rail
- Corrosion resistance class (CRC)
- 3 - High corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- For use in the food industry
- See supplementary material information
- Ambient temperature
- -40 °C...120 °C
- Tightening torque
- 0.2 Nm...0.6 Nm
- Product weight
- 3.5 g
- Type of mounting
- Clamped | With threaded pin
- Note on materials
- RoHS compliant
- Retainer bracket material
- Wrought aluminum alloy | Anodized
- Material of screws
- high-alloy stainless steel
