Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

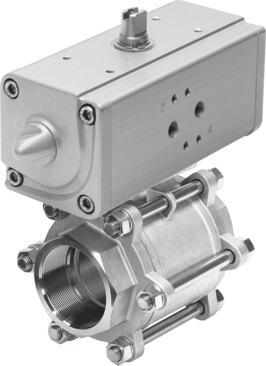

Reference imageConfirm configuration by manufacturer part number.
Festo
1809660
Ball valve actuator unit VZBA-3"-GG-63-T-22-F0710-V4V4T-PP180-R-90-C
The Festo 1809660 is a pneumatic 2-way ball valve featuring a quarter turn actuator and high-alloy stainless steel housing designed for in-line installation in any mounting position. It accommodates a nominal width DN of 80, a nominal pressure of fitting PN of 63, an operating pressure of 6 bar to 8.4 bar, and a flow rate Kv of 905 m³/h across a medium temperature range of -10 °C to 200 °C. The unit operates with compressed air, inert gas, water, and neutral liquids, incorporating a switching position indication where slot direction equals flow direction and providing RoHS and VDMA24364 Zone III LABS conformity. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1809660
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1809660.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Structural design
- 2-way ball valve | Quarter turn actuator
- Actuation type
- Pneumatic
- Mounting position
- Any
- Type of mounting
- In-line installation
- Fitting connection
- Rp3
- Switching position indication
- Slot direction = ow direction
- Nominal width DN
- 80
- Operating pressure
- 6 bar...8.4 bar
- Nominal pressure of tting PN
- 63
- Medium
- Compressed air as per ISO 8573-1:2010 [-:-:-] | Inert gas | Water – no water vapor | Neutral liquids
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Temperature of medium
- -10 °C...200 °C
- Ambient temperature
- -10 °C...80 °C
- Flow rate Kv
- 905 m³/h
- Max. surface temperature of assembly
- TX
- Explosion group of assembly
- IIC, IIIC
- Note on materials
- RoHS compliant
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Housing material
- high-alloy stainless steel
- Material number of housing
- 1,4408
- Seals material
- PTFE | PTFE-reinforced
- Ball material
- high-alloy stainless steel
- Material number for ball
- 1,4408
- Shaft material
- high-alloy stainless steel
- Material number for shaft
- 1,4401
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 1809660. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
