18210

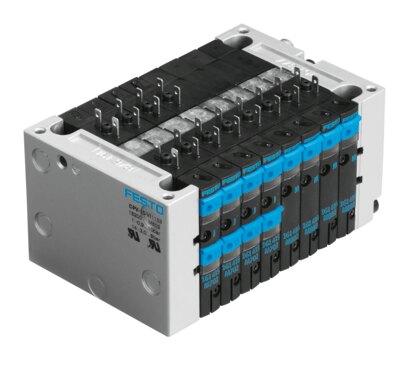

Name: Festo 18210 Valve manifold CPV14-VI
Brand: Festo

Valve manifold CPV14-VI

The Festo part number 18210 is an industrial component valve terminal type 10 featuring electrical actuation options including AS-Interface, CPI installation system, individual connection, fieldbus, and multi-pin, along with an electrical I/O system. It operates with compressed air as per ISO 8573-1:2010 [7:4:4] within a medium and ambient temperature range of -5 °C to 50 °C, a storage temperature range of -20 °C to 40 °C, and an operating pressure range of -0.09 MPa to 1 MPa. The unit provides IP65 protection, corrosion resistance class 1 to 2, LABS conformity to VDMA24364-B1/B2-L, and carries CE, UKCA, KC, RCM, cULus, and explosion protection certifications for Class I, Div. 2 (US), Zone 2 (ATEX), and Zone 2 (UKEX). Submit the exact part number, quantity, and application requirements for a formal quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 18210
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 18210.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Electrical actuation: AS-Interface | CPI installation system | Individual connection | Fieldbus | Multi-pin
Electrical I/O system: Yes
Valve terminal type: 10
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Temperature of medium: -5 °C...50 °C
Ambient temperature: -5 °C...50 °C
Storage temperature: -20 °C...40 °C
Degree of protection: IP65
Corrosion resistance class (CRC): 1 - Low corrosion stress | 2 - Moderate corrosion stress
Operating pressure: -0.09 MPa...1 MPa | -0.9 bar...10 bar
Information on operating pressure: 0 – 0.8 bar with external pilot air | 0 - 8 bar with external pilot air
Pilot pressure MPa: 0.3 MPa...8 MPa
Pilot pressure: 3 bar...80 bar
LABS (PWIS) conformity: VDMA24364-B1/B2-L
CE marking (see declaration of conformity): As per EU EMC directive | as per EU explosion protection directive (ATEX) | As per EU RoHS directive
UKCA marking (see declaration of conformity): To UK instructions for EMC | acc. to UK EX instructions | To UK RoHS instructions
KC characters: KC-EMV
Certication: RCM compliance mark | c UL us - recognized (OL)
Explosion prevention and protection: Class I, Div. 2 (US) | Zone 2 (ATEX) | Zone 2 (UKEX)
ATEX category gas: II 3G

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 18210. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
