Festo
18220

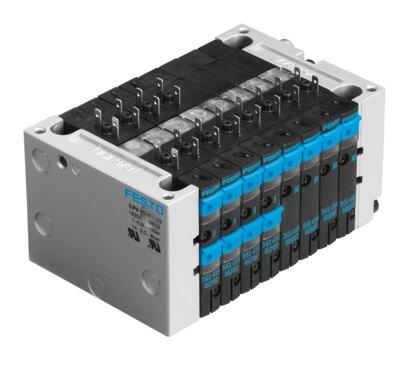

Valve manifold CPV18-VI
The Festo 18220 is a type 10 industrial valve terminal featuring electrical actuation via AS-Interface, CPI installation system, individual connection, fieldbus, and multi-pin interfaces. Operating with compressed air as per ISO 8573-1:2010 [7:4:4] within a medium and ambient temperature range of -5 °C to 50 °C, it supports an operating pressure of -0.9 bar to 10 bar and a pilot pressure of 3 bar to 8 bar. This component holds an IP65 degree of protection, CRC 1 and 2 ratings, and relevant certifications including ATEX Zone 2, UKEX Zone 2, and cULus recognition, while complying with EU and UK EMC, EX, and RoHS directives. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 18220
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 18220.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Electrical actuation
- AS-Interface | CPI installation system | Individual connection | Fieldbus | Multi-pin
- Electrical I/O system
- Yes
- Valve terminal type
- 10
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Temperature of medium
- -5 °C...50 °C
- Ambient temperature
- -5 °C...50 °C
- Storage temperature
- -20 °C...40 °C
- Degree of protection
- IP65
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress | 2 - Moderate corrosion stress
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Information on operating pressure
- 0 – 0.8 bar with external pilot air | 0 - 8 bar with external pilot air
- Pilot pressure MPa
- 0.3 MPa...0.8 MPa
- Pilot pressure
- 3 bar...8 bar
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- CE marking (see declaration of conformity)
- As per EU EMC directive | as per EU explosion protection directive (ATEX) | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | acc. to UK EX instructions | To UK RoHS instructions
- KC characters
- KC-EMV
- Certication
- RCM compliance mark | c UL us - recognized (OL)
- Explosion prevention and protection
- Class I, Div. 2 (US) | Zone 2 (ATEX) | Zone 2 (UKEX)
- ATEX category gas
- II 3G
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 18220. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
