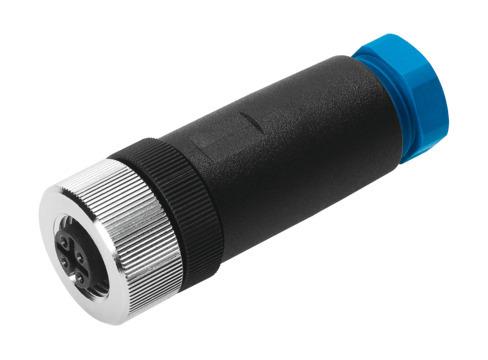

Reference imageConfirm configuration by manufacturer part number.
Festo
18324
Plug socket FBSD-GD-9-5POL
The Festo part number 18324 is an industrial component featuring an M12x1 5-pin straight socket with a screw terminal and Form A electrical connection, designed for mounting with a union nut in any position. It operates within a 60 V AC and DC voltage range, supports a 4 A current rating at 40 °C, and provides an IP67 degree of protection across an ambient temperature range of -40 °C to 85 °C. Constructed in compliance with EN 61076-2-101 and EN 61984 norms with a Pg9 cable fitting for 6 mm to 8 mm cable diameters, this RoHS-compliant unit weighs 33 g and exhibits a surge resistance of 1.5 kV with a contamination level of 3 and CRC 1 low corrosion stress. Submit the exact part number, quantity, and application requirements for a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 18324
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 18324.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Based on norm
- EN 61076-2-101 | EN 61984
- Type of mounting
- With union nut
- Mounting position
- Any
- Product weight
- 33 g
- Electrical connection
- 5-pin | Straight socket/screw terminal | Form A | M12x1
- DC operating voltage range
- 60 V
- Operating voltage range AC
- 60 V
- Current rating at 40° C
- 4 A
- Surge resistance
- 1.5 kV
- Cable tting
- Pg9
- Approved cable diameter
- 6 mm...8 mm
- Connection cross section
- 0.75 mm²
- Degree of protection
- IP67
- Ambient temperature
- -40 °C...85 °C
- CE marking (see declaration of conformity)
- As per EU low voltage directive
- UKCA marking (see declaration of conformity)
- To UK instructions for electrical equipment
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Note on materials
- RoHS-compliant
- Contamination level
- 3
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- Housing material
- PA-reinforced
- Housing colour
- Black
- Material of union nut
- Die-cast zinc | Nickel-plated
- Material of pin contacts
- Bronze | Nickel-plated and gold-plated
