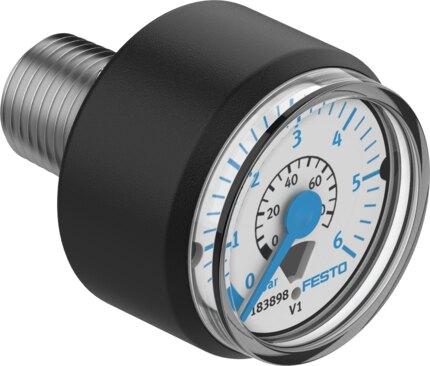

Reference imageConfirm configuration by manufacturer part number.
Festo
183896
Pressure gauge MA-23-6-R1/8
The Festo 183896 is a Bourdon tube pressure gauge featuring a nominal size of 23 and a display and operating pressure range of 0 bar to 6 bar, or 1 psi to 87 psi, with a measurement accuracy class of 4 and an intermittent load factor of 0.6. Constructed with brass for the housing, screwed plug, and media-contacting components alongside a polycarbonate inspection window, this in-line mounted unit utilizes a centered rear R1/8 pneumatic connection for inert gases and neutral liquids within a temperature range of -20 °C to 60 °C, excluding acetylene and oxygen. It holds an IP44 degree of protection, conforms to VDMA24364-B1/B2-L LABS conformity requirements, and includes RoHS compliant materials. Submit the exact part number, quantity, and application requirements to request a quote for this industrial component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 183896
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 183896.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Display range
- 0 bar...6 bar | 1 psi...87 psi
- Pressure gauge nominal size
- 23
- Structural design
- Bourdon tube pressure gauge
- Type of mounting
- In-line installation
- Operating medium
- Inert gases | Neutral liquids
- Information on operating and pilot media
- No acetylene | No oxygen
- Operating pressure
- 0 MPa...0.6 MPa | 0 bar...6 bar | 0 psi...87 psi
- Intermittent load factor
- 0.6
- Measurement accuracy class
- 4
- Degree of protection
- IP44
- Temperature of medium
- -20 °C...60 °C
- Ambient temperature
- -20 °C...60 °C
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Note on materials
- RoHS compliant
- Connection position
- Centered on rear side
- Pneumatic connection
- R1/8
- Materials in contact with the media
- Brass
- Material of screwed plug
- Brass
- Housing material
- Brass
- Inspection window material
- PC
- Housing colour
- Black
- Product weight
- 27 g
- Scale
- Double scale | bar (außen) | psi (inner scale)
