Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

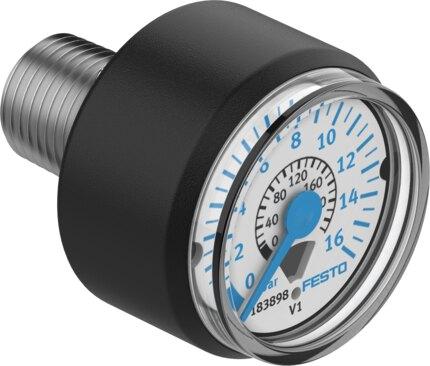

Reference imageConfirm configuration by manufacturer part number.
Festo
183898
Pressure gauge MA-23-16-R1/8
The Festo 183898 is a Bourdon tube pressure gauge featuring a nominal size of 23 and a display and operating pressure range of 0 bar to 16 bar, 0 psi to 232 psi, or 0 MPa to 1.6 MPa. This in-line installation component utilizes a centered rear-side R1/8 pneumatic connection, brass housing, brass screwed plug, brass media-contacting materials, and a PC inspection window with an IP44 degree of protection. It operates with neutral liquids and inert gases within a medium and ambient temperature range of -20 °C to 60 °C, while strictly excluding acetylene and oxygen media. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 183898
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 183898.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Display range
- 0 bar...16 bar | 0 psi...232 psi
- Pressure gauge nominal size
- 23
- Structural design
- Bourdon tube pressure gauge
- Type of mounting
- In-line installation
- Operating medium
- Inert gases | Neutral liquids
- Information on operating and pilot media
- No acetylene | No oxygen
- Operating pressure
- 0 MPa...1.6 MPa | 0 bar...16 bar | 0 psi...232 psi
- Intermittent load factor
- 0.6
- Measurement accuracy class
- 4
- Degree of protection
- IP44
- Temperature of medium
- -20 °C...60 °C
- Ambient temperature
- -20 °C...60 °C
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Note on materials
- RoHS compliant
- Connection position
- Centered on rear side
- Pneumatic connection
- R1/8
- Materials in contact with the media
- Brass
- Material of screwed plug
- Brass
- Housing material
- Brass
- Inspection window material
- PC
- Housing colour
- Black
- Product weight
- 27 g
- Scale
- Double scale | bar (außen) | psi (inner scale)
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 183898. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
