Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com
Reference imageConfirm configuration by manufacturer part number.
Festo
184135

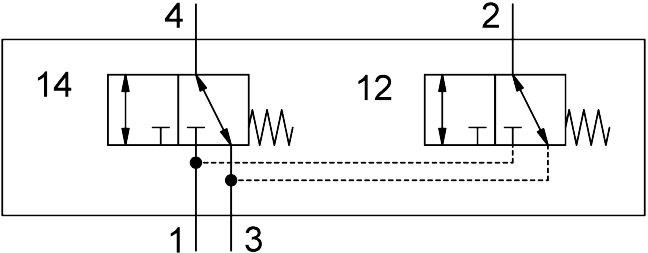

Front panel valve SV/O-3-PK-3X2
The Festo 184135 is a directly controlled industrial component featuring a 2x3/2 closed, monostable valve function with a normal nominal flow rate of 70 l/min normalized to DIN 1343. Operating within a pressure range of 0 bar to 8 bar, this 34 g unit incorporates a soft NBR sealing principle, a 2.5 mm nominal width, and PK-3 pneumatic working ports for compressed air media as per ISO 8573-1:2010 [7:-:-]. Certified for ATEX Zone 1, Zone 2, Zone 21, and Zone 22 explosion prevention and protection, it utilizes mechanical spring reset, VDMA24364-B1/B2-L LABS conformity, and through-hole mounting across any installation position at ambient temperatures from -10 °C to 60 °C. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 184135
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 184135.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 2x3/2 closed, monostable
- Normal nominal ow rate (normalized to DIN 1343)
- 70 l/min
- Pneumatic working port
- PK-3
- Operating pressure
- 0 bar...8 bar
- Reset method
- Mechanical spring
- Nominal width
- 2.5 mm
- Sealing principle
- Soft
- Mounting position
- Any
- Type of control
- directly
- Flow direction
- Non-reversible
- Explosion prevention and protection
- Zone 1 (ATEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 22 (ATEX)
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -10 °C...60 °C
- Product weight
- 34 g
- Type of mounting
- With through-hole
- Pneumatic connection 1
- PK-3
- Pneumatic connection 2
- PK-3
- Seals material
- NBR
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 184135. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
