184512

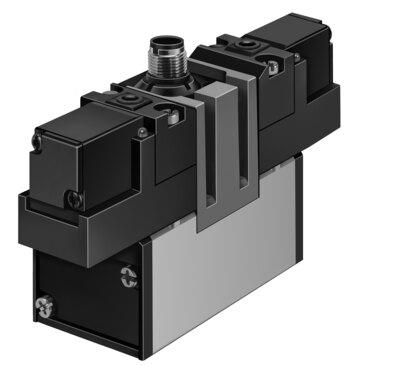

Name: Festo 184512 Air solenoid valve MEBH-5/3G-D-3-ZSR-C
Brand: Festo

Air solenoid valve MEBH-5/3G-D-3-ZSR-C

The Festo part number 184512 is a 5/3-way closed electrical industrial component featuring a 65 mm width, a nominal width of 14.5 mm, and an ISO code of 356 with size 3 sub-base or G1/2 pneumatic working ports according to ISO 5599-1. Operating on 24V DC with an operating pressure range of 0.3 MPa to 1 MPa (3 bar to 10 bar), this piloted valve delivers a normal nominal flow rate of 4100 l/min alongside adjustable exhaust air function, soft sealing, non-detenting manual override, mechanical spring reset, and an IP65 degree of protection. Submit the exact part number, quantity, and application requirements for a formal quotation.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 184512
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 184512.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Valve function: 5/3-way, closed
Actuation type: Electrical
Width: 65 mm
Normal nominal ow rate (normalized to DIN 1343): 4100 l/min
Pneumatic working port: Sub-base, size 3 as per ISO 5599-1 | G1/2
Operating voltage: 24V DC
Operating pressure: 0.3 MPa...1 MPa | 3 bar...10 bar
Reset method: Mechanical spring
Degree of protection: IP65
Nominal width: 14.5 mm
Width dimension: 71 mm
Exhaust air function: Adjustable
Sealing principle: Soft
Mounting position: Any
Manual override: Non-detenting
ISO code: 356
Type of control: Piloted
Flow direction: Non-reversible
Switching time oﬀ: 130 ms
On switching time: 38 ms
Coil characteristics: 24 V DC: 2.5 W
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 2 - Moderate corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Temperature of medium: -10 °C...50 °C
Ambient temperature: -10 °C...50 °C
Electrical connection: M12x1 | Central plug
Type of mounting: With through-hole

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 184512. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
