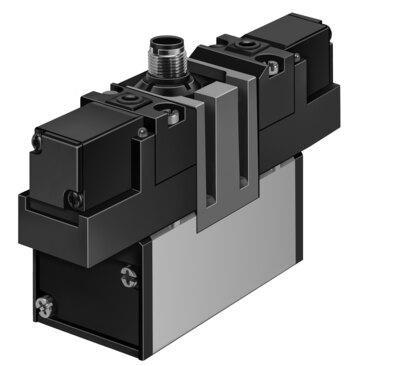

Reference imageConfirm configuration by manufacturer part number.
Festo
184513
Air solenoid valve MEBH-5/3B-D-3-ZSR-C
The Festo 184513 is an electrical 5/3-way pressurized industrial component featuring a piston gate valve structural design and a nominal width of 14.5 mm. Operating on 24V DC with an operating pressure range of 0.3 MPa to 1 MPa (3 bar to 10 bar), this piloted valve conforms to ISO 5599-1, utilizes internal pilot air supply, and delivers a normal nominal flow rate of 4000 l/min through a size 3 ISO 5599-1 sub-base or G1/2 pneumatic working port. Built with an IP65 degree of protection, non-detenting manual override, adjustable exhaust air function, and soft sealing principle, the unit measures 65 mm in width and incorporates a mechanical spring reset method for mounting in any position. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 184513
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 184513.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/3-way, pressurized
- Actuation type
- Electrical
- Width
- 65 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 4000 l/min
- Pneumatic working port
- Sub-base, size 3 as per ISO 5599-1 | G1/2
- Operating voltage
- 24V DC
- Operating pressure
- 0.3 MPa...1 MPa | 3 bar...10 bar
- Structural design
- Piston gate valve
- Reset method
- Mechanical spring
- Degree of protection
- IP65
- Nominal width
- 14.5 mm
- Width dimension
- 71 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Conforms to standard
- ISO 5599-1
- Manual override
- Non-detenting
- ISO code
- 358
- Type of control
- Piloted
- Pilot air supply port
- Internal
- Flow direction
- Non-reversible
- Switching time off
- 130 ms
- On switching time
- 38 ms
- Coil characteristics
- 24 V DC: 2.5 W
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Temperature of medium
- -10 °C...50 °C
- Ambient temperature
- -10 °C...50 °C
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 184513. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
